2.0 USB C Connector Male Welding USB C Cable Jack With 1 Year Warranty

usb type c connector

usb c male connector

Place of Origin:

Guangdong, China (Mainland)

Request A Quote

2.0 USB C Connector Male Welding USB C Cable Jack With 1 Year Warranty

Product Details

Material:

C2680 Copper

Gender:

Male

Port:

16pin

Certificate:

ROHS/TID

Color:

All Color Available

Warranty:

1 Year

Type:

USB 2.0 Type C With Color

Special:

OEM Service Offered

Highlight:

usb type c connector

usb c male connector

Payment & Shipping Terms

Minimum Order Quantity

Negotiable

Price

Negotiable

Packaging Details

35*27*25cm;24.5kg;50000pcs;Carton packed;Tray/Reel/Tube,standard export packing

Delivery Time

5-7days

Payment Terms

D/P, Western Union, L/C, T/T, MoneyGram

Supply Ability

1000000 Piece/Pieces per Day

16 Pin Usb 3.1 C Connector , Usb 3.0 Type C Connector With PCB Board

Get Best Price

Type C Micro Usb Connector Stainless Steel Shell With Charge / Data Function

Get Best Price

USB C Connector 3.1/3.0/2.0 Plain Shell With PCB Male Connector

Get Best Price

Male 3.1 Usb Type C Connector For Cellphone And Computer Charging

Get Best Price

861329934567

ecergood@maoyt.com

86-0731-6531333

Contact Now

Product Description

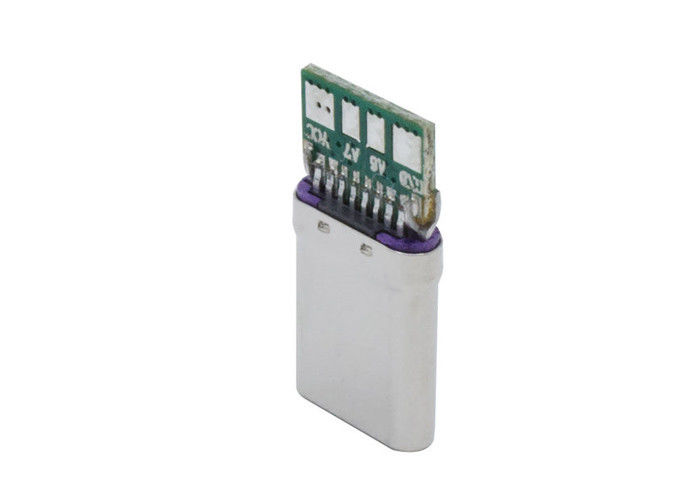

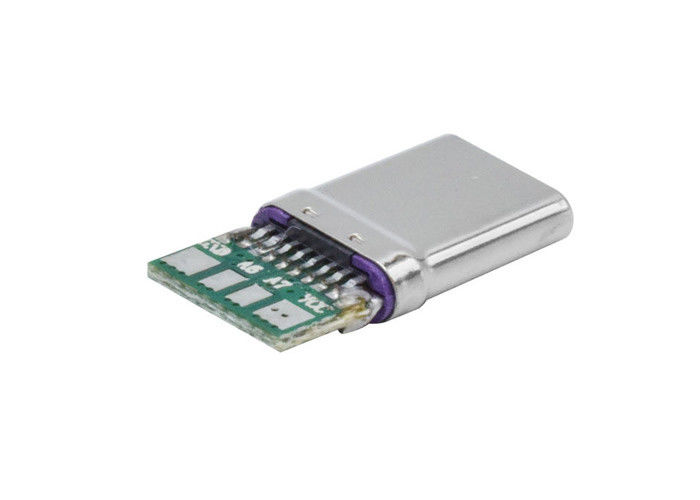

Colorful Type 2.0 USB C Connector Male Welding USB C Cable Jack

1. Product Datasheet information:

Product Name	type c 2.0 connector with color	Type	Solder usb cable
Shell	Stainless Steel	Rated current	3amp
Terminal	C2680 Copper with 0.5u Golden plated	Application	Phone Computer
Fuction	data+charging+anther fuction	Durability	10000-15000 times

Materials:
Body: LCP, UL94V-0 rated. color: Black

Shield: 301 Stainless Steel
Plating: gold plating over nickel on contact area

Contact: C2680

Electrical:

Connector type: usb c male connector with color

Rated current: 3amp
Rated voltage: 125VAC
Insulation resistance:300MΩmin
Contact resistance: 30MΩmax

Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min

Mechanical:
Operation voltage:35V DC max

Current rating: 0.5 Ampere per contact
Contact resistance: 30m Ω max

Insulation resistance: 2000m Ω min

Dielectric withstanding voltage: 1200V AC

Operating temperature: -20°c to + 85°c

2. Lead Time:

1-10000pcs	1-3days
>1000000pcs	7-15days
>10000000pcs	To be negotiated

3 Our Services:

Delivery on time!
Provide high quality and the best price!
Provide first class service after sale!
Sample free for resonble quantity!
All plug,jack and cable can be custom-made according to your request on desigh, size or materials!
