Place of Origin:
China
Certification:
CE ROHS
SMA series is a kinds of mini, high-frequency RF coaxial connector, it's developed and produced according to MIL-C-39012 by Xi'an Elite Electronic Industrial Co., Ltd. With characteristics of small volume,good bandwidth,superior electrical characteristics. It is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.
Specification:
| Electrical Characteristics | |||
| Impedance | 50Ω | ||
| Frequency Range | Connect with solf cable DC~12.4GHz | ||
| Connect with semi-rigid cable DC~18GHz | |||
| Rated Voltage | 335VRMS* | ||
| Dielectrics Voltage-resistance | 1000VRMS* | ||
| Insulation Resistance | ≥5000MΩ | ||
| Center Resistance | Center Conductor | ≤3.0mΩ | |
| Outer Conductor | ≤2.0mΩ | ||
| VSWR | ≤1.3 | ||
| Material & Mechanical Characteristics | |||
| Center Conductor | Male | Brass Gold plated | |
| Female | Sn-P Bronze Gold plated | ||
| Elastic Contact | Beryllium bronze Nickel plated | ||
| Shell and other Metal Parts | Brass Nickel plated | ||
| Stainless Passivation | |||
| Crimping Sleeve | Brass Nickel plated | ||
| Tightening torque of connection | 0.79－1.13N .m | ||
| Durability | 500 cycles | ||
| Sealing Ring | Silicone Rubber | ||
| Insulators | PTFE | ||
Advantages:
1. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required
2. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc
3. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz
4. SMA RF connectors are available in quick connect, push-on or standard interface, straight, 90 degrees versions,as well as bulkhead, or 4 hole panel configurations
Application:
*Network
*Radar
*Automotive
*Satcom
*Computer/LANs
*Broadband
*Instrumentation
*Phased array antennas
*Telecommunications
*Aerospace
*Board-to-board interconnect

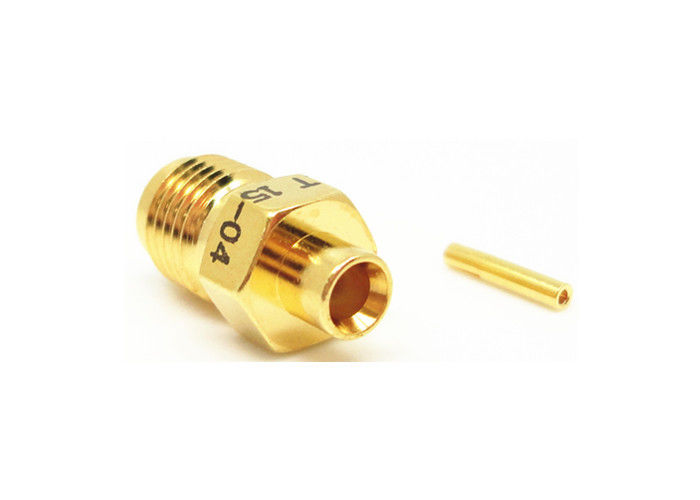

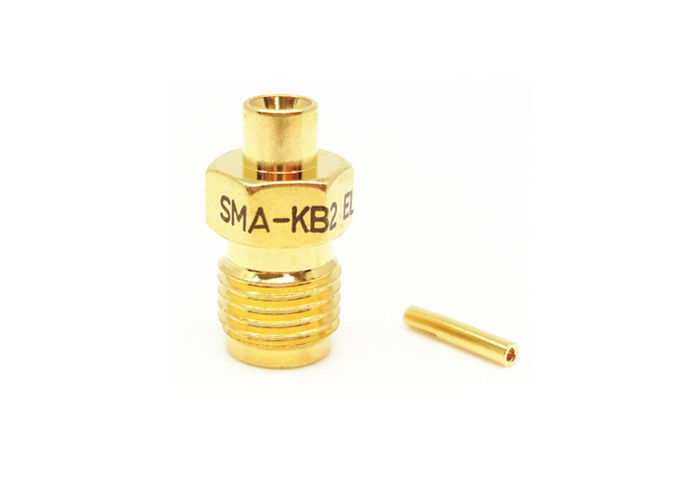

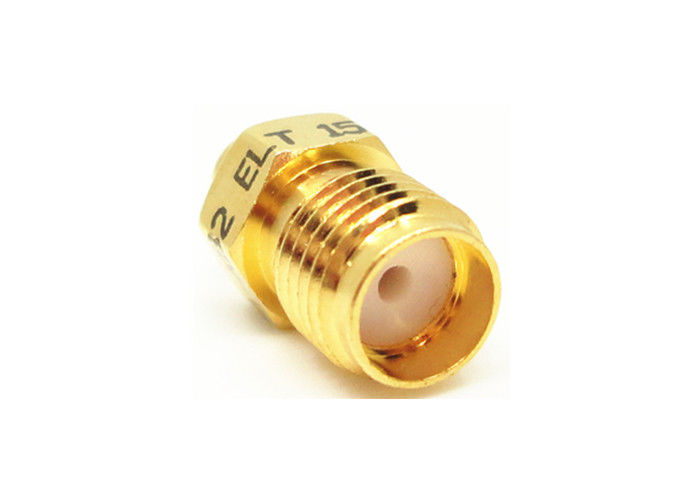

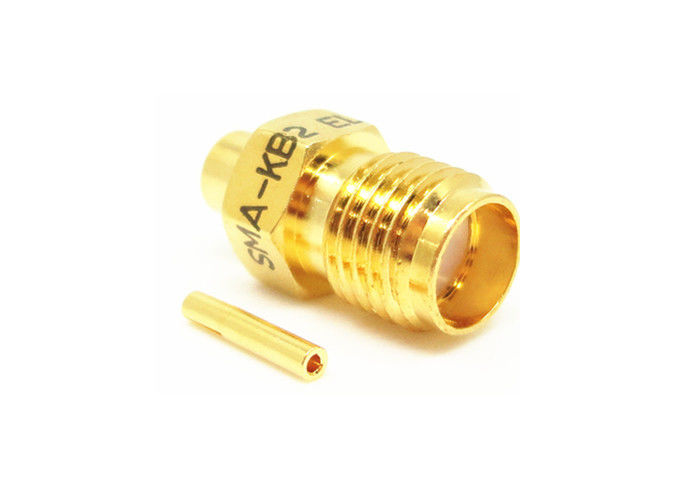

More Pictures:
Product Cataloge:
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
Packaging Details:
* Standard Export Carton
* According to clients' requirements
NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
