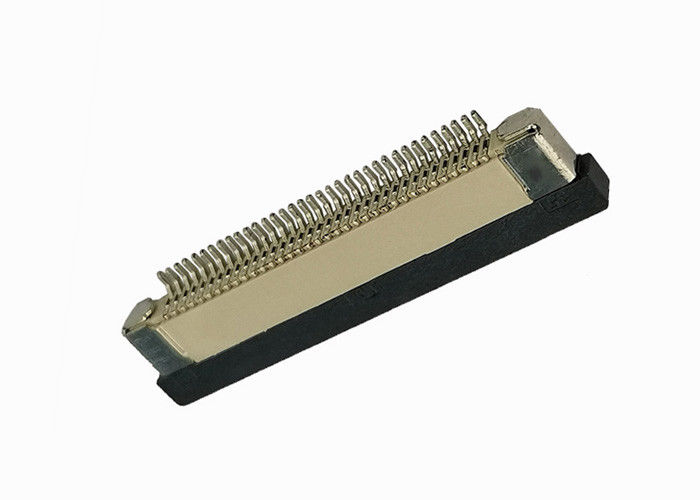

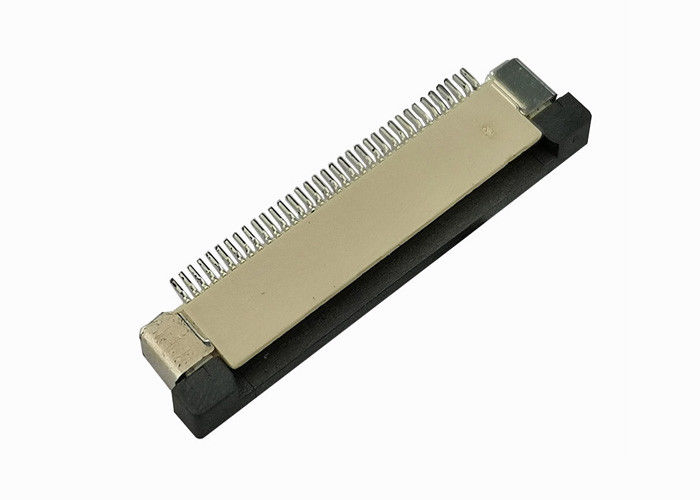

Horizontal FFC FPC Ribbon Cable Connectors 0.5mm 35 Pin For LCD Module

Horizontal FFC FPC Ribbon Cable Connectors 0.5mm 35 Pin For LCD Module

fpc test connector

ffc cable connector

Place of Origin:

China

Certification:

ISO9001, SGS, Rohs, Reach

Contact Us
Request A Quote
Product Details
Pitch:
0.5mm
Insulator Material:
PA6T/PA9T/LCP
Circuits:
4~68P
Contact Plating:
Gold/Tin Over Nickel
Application:
PCB Board
Operating Temperature:
-40~105℃
Highlight:

fpc test connector

,

ffc cable connector

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
Tray Packing
Delivery Time
3~7workdays
Payment Terms
L/C, T/T, Western Union,paypal
Supply Ability
100000pcs/day
Product Description

Horizontal FFC FPC Ribbon Cable Connectors 0.5mm 35 Pin For LCD Module





Description

1. FFC connector is flexible flat cable connector.



2. It is a new type of data cable made of pet insulating material and very thin tinned flat copper wire, which is pressed by high-tech automation equipment production line.



3. It has the advantages of softness, arbitrary bending and folding, thin thickness, small volume, simple connection, convenient disassembly, easy to solve electromagnetic shielding (EMI).



4. FPC connector is a flexible printed circuit board. Generally speaking, it is a PCB connector made of flexible materials (folding and bending materials) for the connection between LCD display and drive circuit (PCB).



Product Application:

They are widely used in the connection between various printer printheads and mainboards, signal transmission and board connection of products such as plotters, scanners, copiers, audio, liquid crystal appliances, fax machines and various DVD players.





Name

FFC Connector

Pitch

0.5mm

Type

DIP type

Insulator Color

Black

Insulator Flammability

UL 94V-0

Current Rating

3A

Contact Resistance(max)

4m ohm Max

Operating Voltage

60V AC/DC

Insulation Resistance(min)

1000M ohm Min at DC 500V

Contact materials

Gold/Tin plating

Contact Plated

Tin or gold over nickel

Insulator material

PA6T

Processing Temperature

-40~105℃

Packing

Tray Packing

OEM/ODM

Accepted






Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag
special Packing depend on customer

Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.

FAQ
Q: Can I get some samples?
A: Yes,some samples are free.

Q: Which payment can be accepted?
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.



Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
