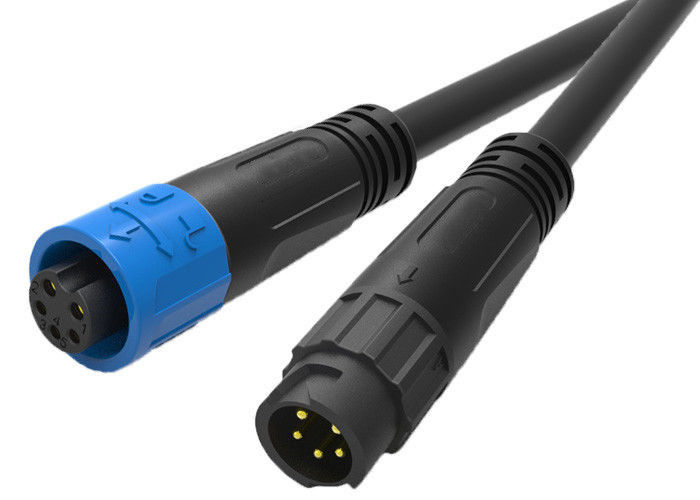

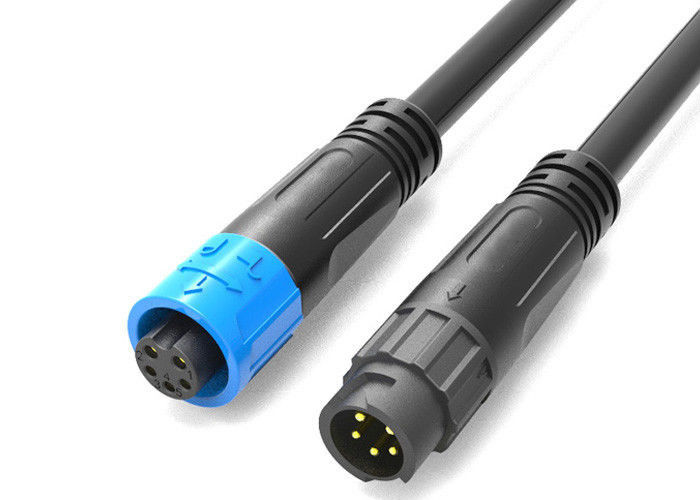

Power Data Combined Waterproof Cable Connector Bayonet 5 Pin For LED Lighting

Power Data Combined Waterproof Cable Connector Bayonet 5 Pin For LED Lighting

waterproof electric cable connectors

water resistant cable connector

Place of Origin:

Shenzhen,China

Certification:

TUV,UL,CE,CCC

Contact Us
Request A Quote
Product Details
Rated Voltage:
300V AC
Color:
Black Blue
Length:
Custom Length
Contact Pin:
5Pin
Material:
PA66
Protection Level:
IP67
Highlight:

waterproof electric cable connectors

,

water resistant cable connector

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time
3~5 working days
Payment Terms
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
10000 sets/Day
Product Description

Power Data Combined Waterproof Cable Connector Bayonet 5Pin For LED Lighting



Description of ip67 power connector



M12 small waterproof wire connectors is a good connection model, widely used in LED lighting, especially in outdoor application, even underwater.



  • 5 pin cable to cable waterproof connector
  • ip67 circular connectors
  • m12 waterproof connector
  • waterproof power connector
  • Sealed against dust and fluid (IP68)
  • Vibration resistance,impact resistance,stretching resistance





Application industries

  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery



Operation Parameters
Voltage Rating 300VAC max
Current Rating 10A max
Min Wire Size OD 3.0mm ~ 5.0mm
Max Wire Size OD 6.5mm ~ 10.5mm
Max.Cable Cross Section Area 0.5mm2 ~ 1.5mm2



How to Chosse the correct connectors:

  1. Confirm Current Rating and Number of Contacts
  2. Confirm Assembly style
  3. Confirm Cable Wire guage
  4. Confirm Cable Length and quantity



Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone




FAQ



1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and shipping way

3. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.
