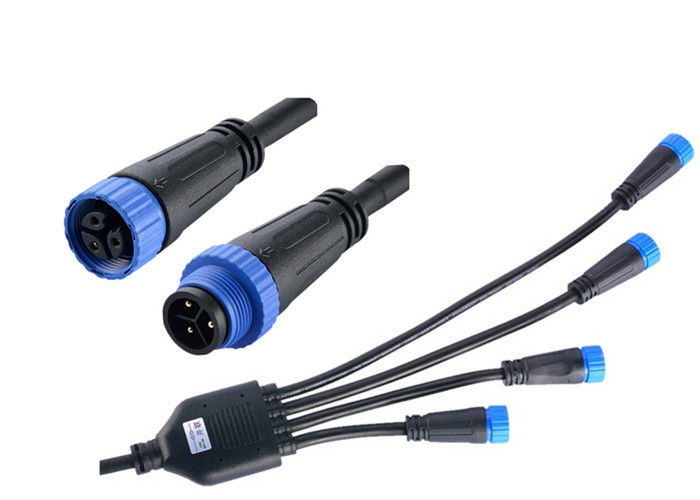

3 Pin 4 Branch Waterproof Plug Connector Y Shape Screw Locking Connector IP68
Basic feature of Y shape 3 Pin 4 Branch Waterproof Plug Connector:
1. waterproof plug connector: 2pin, 3pin, 4pin, 5 pin are available, 2-7 branch are available.
2. The max. of cable diameter is 9.0 mm.
3. current rating are 10A, voltage rating are 300V.
4.Imported high quality fire resistance raw material.
5. fire protection and corrosion resistance.
6. Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.
The specifiction of 2 pin waterproof circular connector
| Current rating |
10A |
| Operating voltage |
300V |
| Withstand voltage |
1500V |
| Temperature rating |
-40°C~105°C |
| Method of connecting cable |
Solder |
| Prevent the combustion level |
UL94-V0
|
| Material |
| Shell&insulated parts |
High performance engineering plastics |
| Contact pin |
Copper alloy(gold-plated) |
| metal material |
Stainless steel |
The material details ofWaterproof plug connector:
1. Any length of the cable is available and welcome.
2. multi-pins(2-5 pins) for varies industrial demands
3. PBT shell ensure fire safety,stable, compression, anti-explosion and anti-deformation
4. gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
Application:
Our waterproof circular connector are widely used in LED lighting,outdoor display,electrical equipment, automation machines,LED panel and etc.
Electric power equipment, Vehicle equipment. Communications equipment, Heavy machinery.
