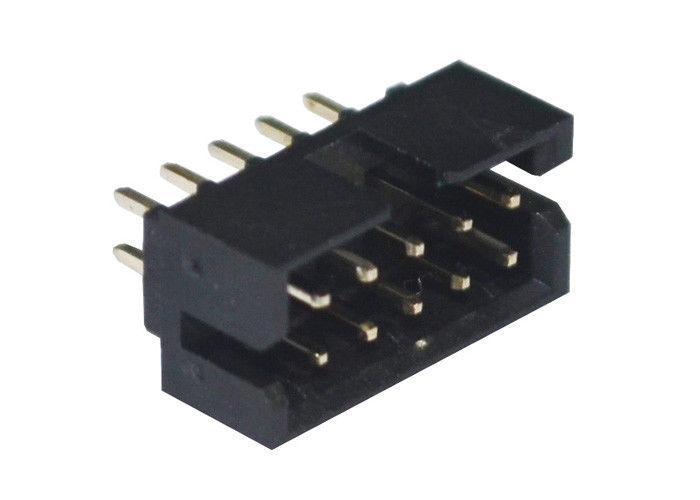

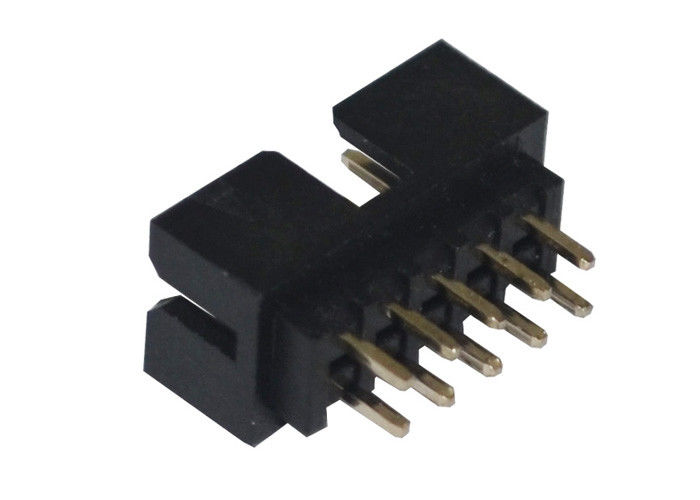

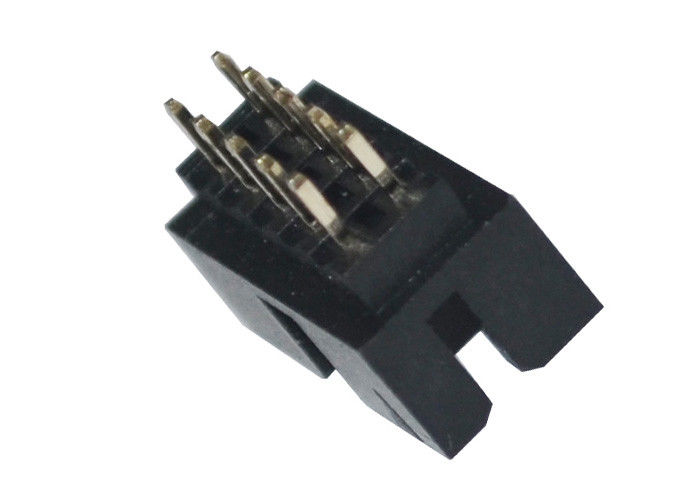

DIP 2.0mm 10 Pin Straight Pin Header Connector High Temperature Resistant

DIP 2.0mm 10 Pin Straight Pin Header Connector High Temperature Resistant

board to wire connector

circuit board wire connectors

Place of Origin:

China

Brand Name:

RealRun

Certification:

ISO9001, SGS, Rohs, Reach

Model Number:

BH2.0*6.4-nP 10P

Contact Us
Request A Quote
Product Details
Pitch:
2.0mm
Color:
Black
Application:
PCB Board
Insulator Material:
PBT/PA6T
Contact Material:
Brass
Contact Plating:
Gold/Tin Over Nickel
Highlight:

board to wire connector

,

circuit board wire connectors

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
Tray Packing
Delivery Time
3~7workdays
Payment Terms
L/C, T/T, Western Union,PayPal
Supply Ability
100000pcs/day
Product Description

DIP 2.0mm 10 Pin Straight Pin Header Connector High Temperature Resistantce



Current Rating

2.0AMP

Contact Resistance

20mΩ Max

Withstand Voltage

500V AC/DC

Insulation Resistance

1000mΩ Min

Operation Temperature

-40℃ to +105℃

Contact Material

Brass

Contact Plating

Au or Sn over Ni

Insulator Material

LCP +30%GF( UL94V-0 )



Product name: Box header connector

1. Product features: high temperature resistant to high voltage electrical conductivity

2. Product material: PA9T/LCP/PBT, plating surface treatment: gold-plated or tin plating

3. Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal



DIP 2.0mm 10 Pin Straight Pin Header Connector High Temperature Resistant 0
