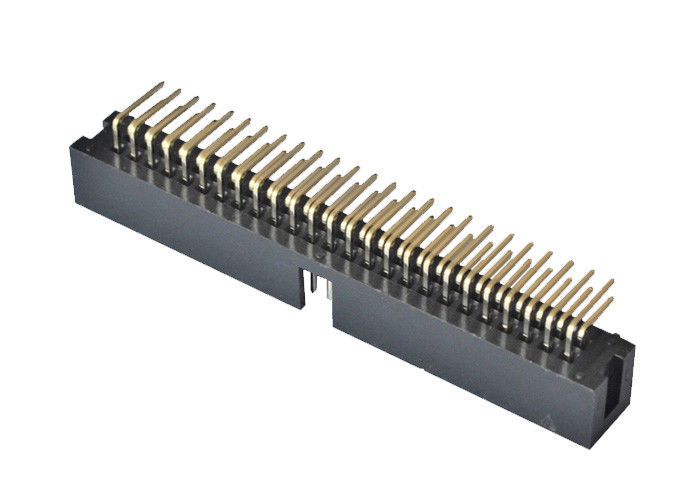

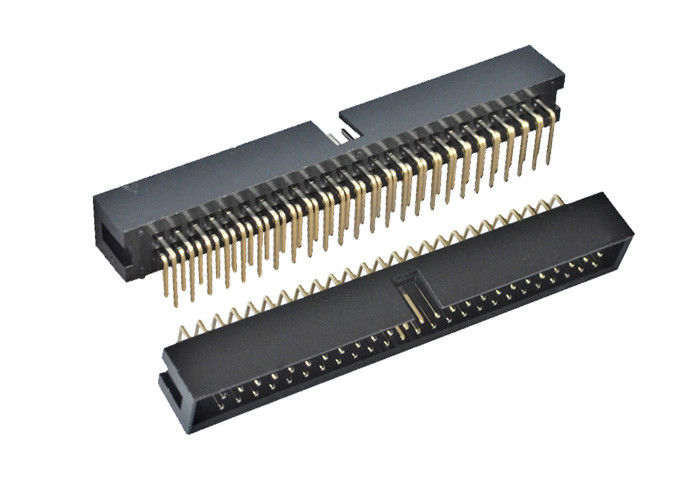

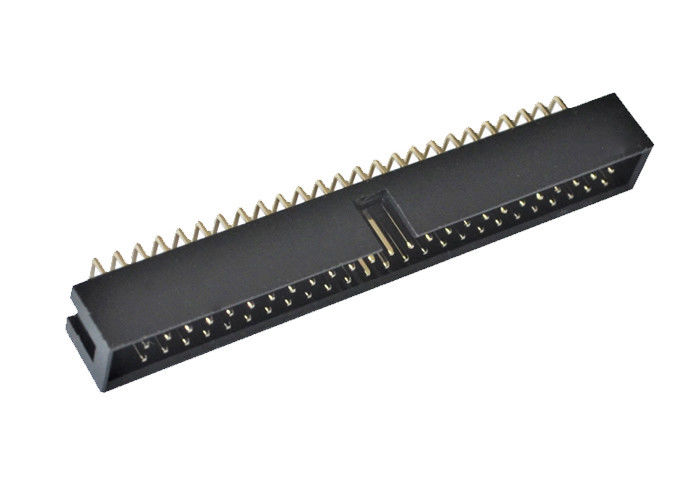

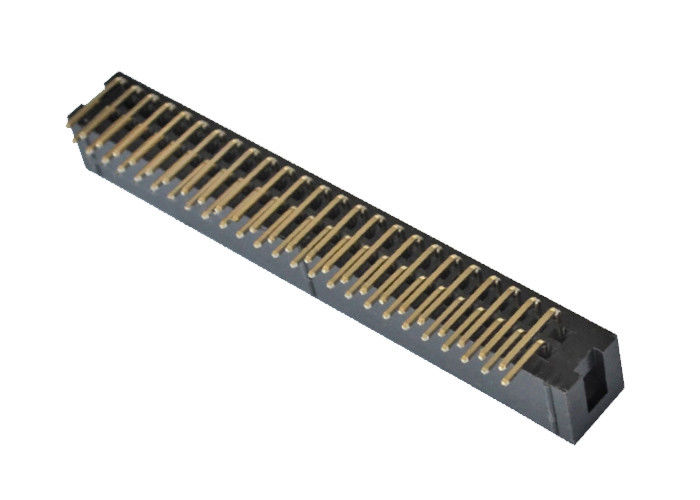

Right Angle Pcb Connector 90 Degree Box Type 2.54mm Pitch 50 Pin Header

Right Angle Pcb Connector 90 Degree Box Type 2.54mm Pitch 50 Pin Header

printed circuit board connector

circuit board wire connectors

Place of Origin:

China

Certification:

ISO9001, SGS, Rohs, Reach

Contact Us
Request A Quote
Product Details
Pitch:
2.54mm
Contact Material:
Brass
Application:
PCB Board
Operation Temperature:
﹣40℃ To +105℃
Color:
Black
Insulator Material:
LCP +30%GF( UL94V-0 )
Highlight:

printed circuit board connector

,

circuit board wire connectors

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
Tray Packing
Delivery Time
3~7workdays
Payment Terms
L/C, T/T, Western Union,PayPal
Supply Ability
100000pcs/day
Product Description

Right Angle Pcb Connector 90 Degree Box Type 2.54mm Pitch 50 Pin Header



Description

1. Female header connector is a kind of connector.

2. Its function is to act as a bridge between the blocked or isolated circuits, and to take on the task of current or signal transmission.

3. It is used together with the pin header to form the board to board connection; or it is used together with the electron beam end to form the board to line connection; it can also be used independently for the board to board connection.


Application
Box header is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. As the most reliable connection plate to plate, wire to board provides.



Pitch

2.54mm

Current Rating

3.0AMP

Contact Resistance

30mΩ Max

Withstand Voltage

500V AC/DC

Insulation Resistance

1000mΩ Min

Operation Temperature ﹣40℃ to +105℃

Contact Material

Brass

Contact Plating

Au or Sn over Ni

Insulator Material

LCP +30%GF( UL94V-0 )







Shipping:

1. We can shipping all over the world by DHL, UPS, FEdex, TNT and EMS. The packaging is very safe and strong. Please nitfy me you have any special needs
2. It will take around 3-7 days to reach your hands.



Product Type & condition:
Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated. So please consult the stock situation when you inquire.



Warranty & Guarantee:
All components we sell the quality with 30 days Return policy from the day of shipment.



Our Advantages:

1.Have a strong research and development ability for a new product

2. Equipment and manufacturing ability for would

3. Competitive price , and in time delivery well-selling in both domestic and foreign markets.

4. Acquired the ISO9001-2000 quality management system certification , ISO14001 environmental management system and UL certification .

5. Reasonable prices, very competitive and reliable.

6. Excellent sales team and tech team ready to serve you.

7. Fast delivery.

8. OEM services with agreed quantity by both parties.

9. Specializes in the development , design , production and sale of communication network connectors .

10. We hope to make long term business cooperation with all our customers.
