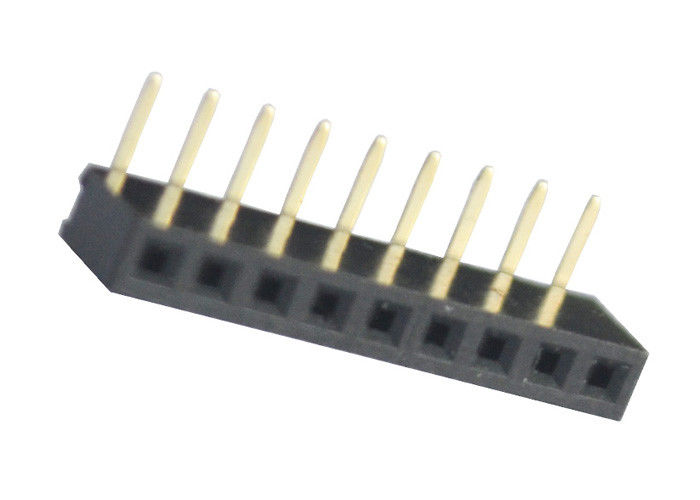

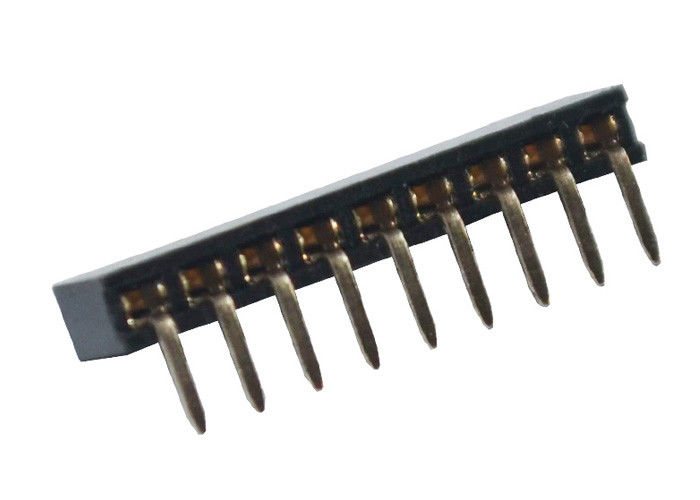

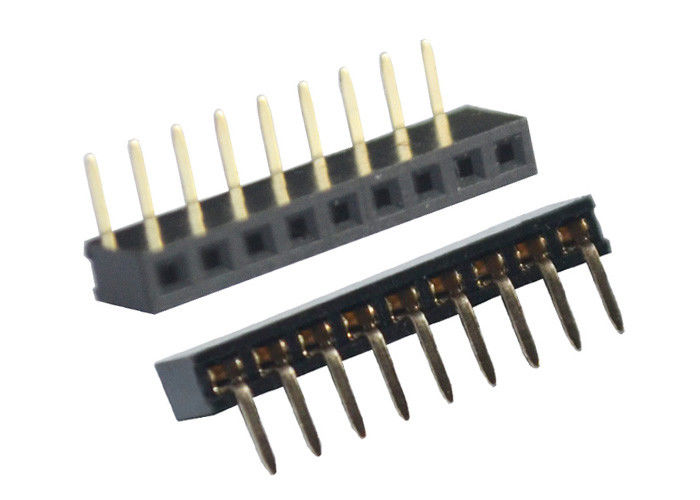

90 Degree SMT Female Header Connector Single Row Black 2.0mm Through Hole
What is the Female Header Connector?
It is used together with the pin header to form the board to board connection; or it is used together with the electron beam end to form the board to line connection; it can also be used independently for the board to board connection.
Product Application
It widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.
Product features
The use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.
Specifications:
| Products Name | Female Header/PCB Connector |
| Pitch | 2.00mm(0.1'') |
| Current Rating | 2.0 AMP |
| Contact Resistance | 20 mΩ Max |
| Withstand Voltage | 500 V AC/DC |
| Insulation Resistance | 1000 MΩ Min |
| Operation Temperature | -40℃ to 105℃ |
| Contact Material | Coppy Alloy |
| Contact Plating | Au or Sn Over Ni |
| Insulator Material | PA6T+30 GF(UL94-V0) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Number of Row | Dual |
| Plastic Height | 4.3mm |
| Contact Finish | Gold Flash |
| Pins available | 2 Pins to 80 Pins |
| Color | Black |
| Packaging | Tube |
Category
1. According to the spacing: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm.
2. According to whether it has convex points, the convex points are divided into half convex and full convex.
3. According to the number of rows: single row, double row, three row, four row, etc. at present, there are only four rows at most.
4. According to the installation mode, 180 degrees are represented by s, 90 degrees by W, and SMT by T.
5. According to whether it needs to be increased or not, whether it needs to be divided with positioning columns, there are two kinds of positioning columns, one is the internal positioning column and the other is the ear positioning column.
6. According to the terminal division: Y-type terminal (generally used for plastic height), U-type terminal (generally used for plastic height), four side ring bonding terminal.
How to Packing:
We provide flexible packaging methods to meet different requirements. For Female Header connector, there are four methods of packaging:
1. Tray Packing, suitable for manual assembly.
2. Tube Packing, suitable for manual assembly.
3. Reel Packing with Mylar, suitable for automatic machine producing
4. Reel Packing with Cap, suitable for automatic machine producing
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
