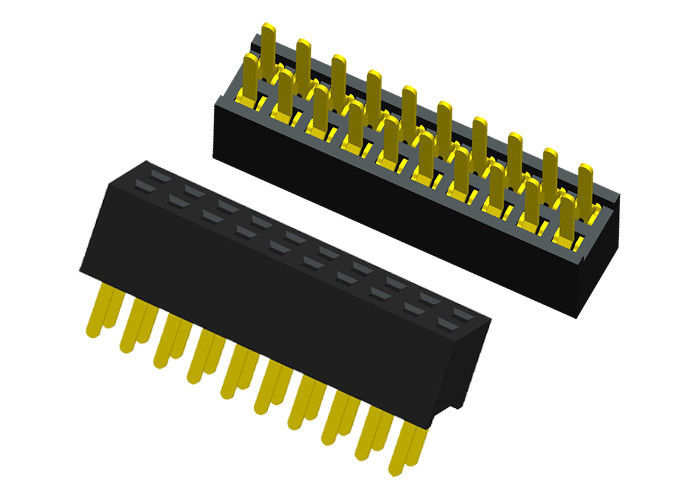

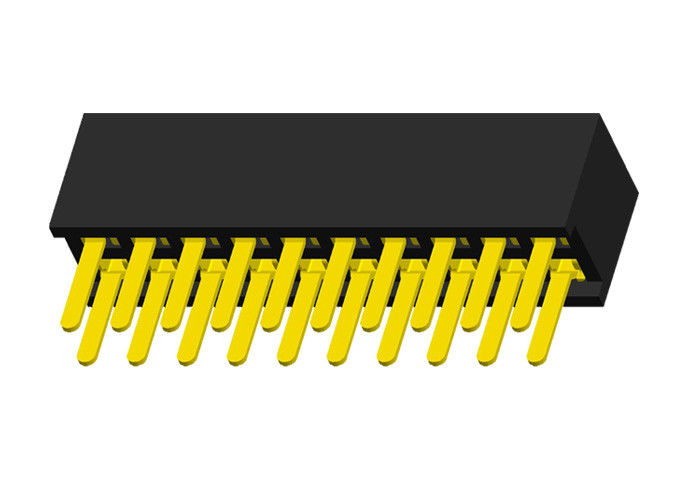

20 Pin Female Header Connector Single Row Straight 180 Degree For PCB Board
Description
1. Female header connector is a kind of connector.
2. Its function is to act as a bridge between the blocked or isolated circuits, and to take on the task of current or signal transmission.
1. It is used together with the pin header to form the board to board connection; or it is used together with the electron beam end to form the board to line connection; it can also be used independently for the board to board connection.
| Name | Female Header Connector |
| Pitch | 1.27mm |
| Plastic Height | 3.4mm |
| Type | Surface Mount SMT type |
| Insulator Color | Black |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 1.0A |
| Contact Resistance(max) | 30m ohm Max |
| Withstand Voltage(for 1 minute) | 500V AC/minute |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tape & Reel |
| OEM/ODM | Accepted |
Category
1. According to the spacing: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm.
2. According to whether it has convex points, the convex points are divided into half convex and full convex.
3. According to the number of rows: single row, double row, three row, four row, etc. at present, there are only four rows at most.
4. According to the installation mode, 180 degrees are represented by s, 90 degrees by W, and SMT by T.
5. According to whether it needs to be increased or not, whether it needs to be divided with positioning columns, there are two kinds of positioning columns, one is the internal positioning column and the other is the ear positioning column.
6. According to the terminal division: Y-type terminal (generally used for plastic height), U-type terminal (generally used for plastic height), four side ring bonding terminal;
