Place of Origin:
China
Certification:
ISO9001, SGS, Rohs, Reach

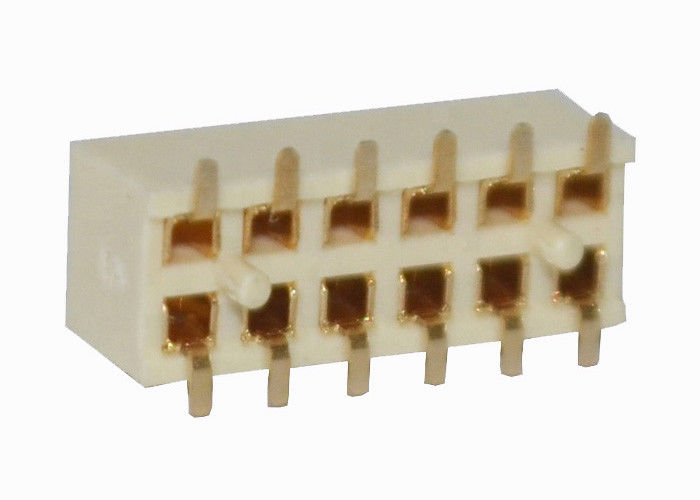

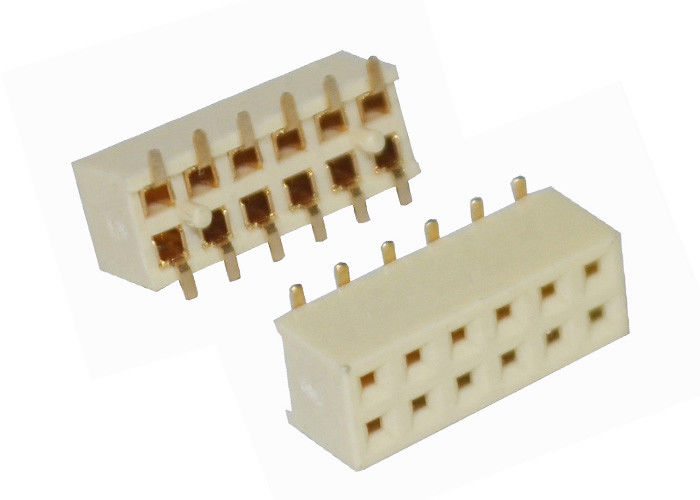

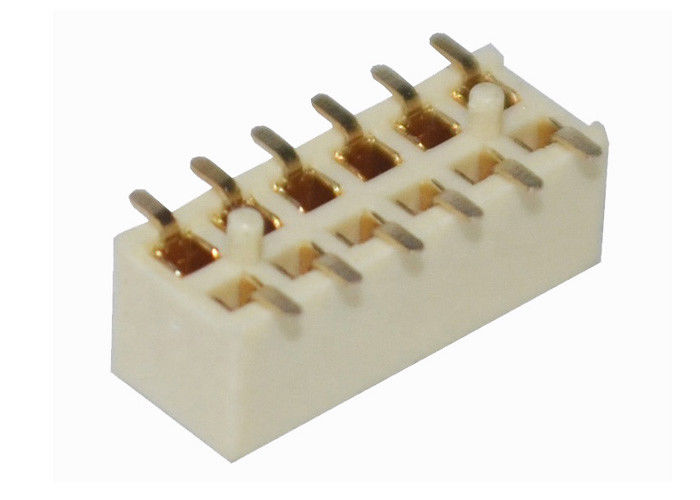

12 Pin Header Connector Female Pcb Connector 2.0mm Pitch Dual Row SMT Type
| Current Rating | 2.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
| Contact Material | phosphor Bronze |
| Contact Plating | AU over Ni |
| Insulator Material | PA9T+30％GF UL94V-0 |
| Item name: 2.0mm female pin connector | ||
| 1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance. | ||
| 2. product material: PA9T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0. | ||
| 3. scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection. |
What is a PCB Connector?
Printed Circuit Board connectors are connection systems mounted on PCBs. Typically PCB Connectors are used to transfer signals or power from one PCB to another, or to or from the PCB from another source in the equipment build. They provide an easy method of Design for Manufacture, as the PCBs are not hard-wired to each other and can be assembled later in a production process.
PCB Connector orientations
The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degree increments:
FAQ
1. What kinds of products are you supply ?
Our main products are screw terminal blocks, spring terminal blocks, barrier terminal blocks, feed through terminal blocks, din rail terminal blocks, pin header, female header,Box Header,Shrouded Header,Switch,IDC socket,FD Connector,Cable Gland,Micro Jack,Cable Ties,MINI DIN,Flat Cabel,IC socket, D-SUB connector, DIN41612 socket , etc. .
2. Your products according to which kind of stardard certificates ?
All products are in line with the RoHS directive, in full accordance with CE, UL, VDE, SGS, REACH and other standard production.
3. What is your payment terms ?
We accept TT, paypal , L/C , etc.
4. What your MOQ ?
For regural items , we do not request for MOQ , for special items , can discuss later .
5. Can you supply free samples ?
Yes , we can supply 20 pcs samples as free .
6. How about your delivery time ?
3-15 days working time , depends on the quantity that you need .
