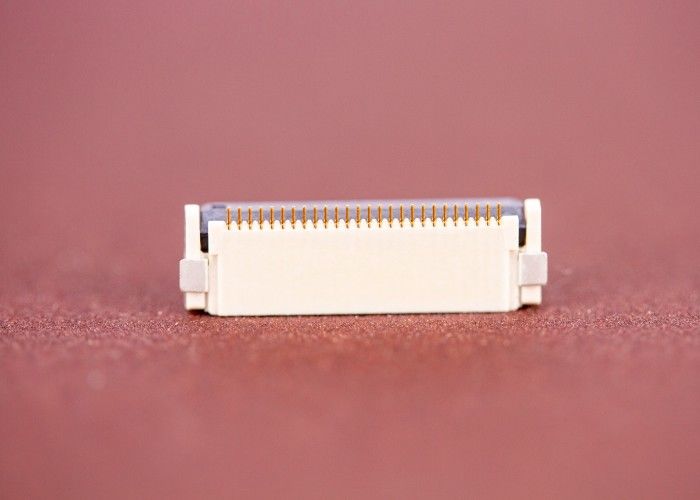

Large Currrent 40 Pin Ffc Connector Easy Cable Management High Flex Applications

0.5MM pitch plastic height 1.8MM 6-70PIN front open front lock type double-sided contact FPC/FFC connector

FH Series connectors are designed for Flat Flex Cable (FFC) or Flexible Printed Circuit (FPC) type connections. These connectors feature contact pitches that range from 0.2 to 1.0 mm and are offered with different contact points; top, bottom, or dual (top and bottom). Typical applications include connecting LCDs to printed circuit boards and a wide verity of board-to-board connection applications.

Product description

Material Composition:

• Main body Housing: LCP Natural color LCP Nature Color (UL 94V-0)
• Lock Cover: LCP Black LCP Black (UL 94V-0)
• Terminal Terminal: Phosphorus Phosphor Bronze
• Positioning plate Stator: Brass Brass

Structure Design Mechanism:

1) Series name Series: PITCH 0.3mm FFC/FPC DUAL CONTACT SIDE CONNECTOR (H=0.9mm) rear rotation lock connector
2) PIN position PIN Position: See product drawing See drawing
3) Contact type Contact: Double-sided contact Double side contact
4) Terminal shape TML Soldering Type: SMT type
5) Suitable for FPC thick PCB Thickness: T=0.2±0.02mm
6) Plating Spec.: See product drawing See drawing
7) Solder coplanarity Coplanarity: 0.10mm MAX

Performance Parameter:

1) Standard status Standard conditions:
A Operating temperature: -40 ~ +85°C No condensation junction. Under ice conditions Without ice or dew
B Use humidity Operation Humidity: 20-85%RH
C storage temperature Storage Temperature: -10 ~ +50 ° C no condensation junction. Under ice conditions Without ice or dew
D Save humidity Storage Humidity: 20～85%RH
2) Rated voltage Rating Voltage: ambient temperature 20 ° C 50V (AC / DC) Ambient temperature 20°C 50V (AC/DC)
3) Rated current Rating Current : Ambient temperature 20 °C 0.5A / PIN Ambient temperature 20°C 0.5A / PIN
