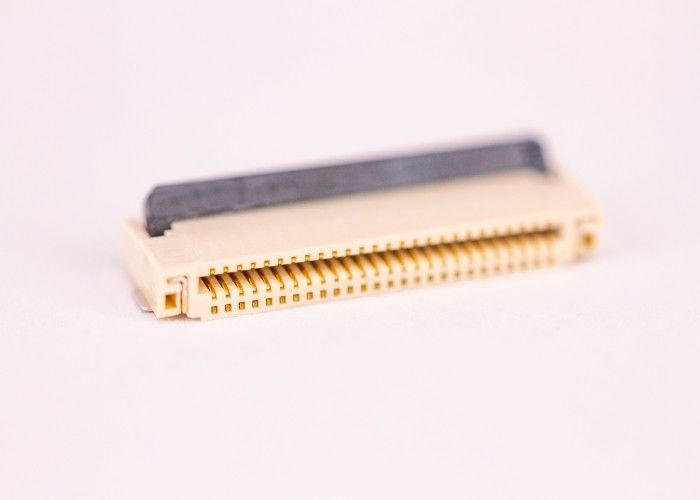

Lightweight 50 Pin Fpc Connector Components Accessories Flat Flexible For Cell Phones

0.5MM pitch plastic height 1.8MM 6-70PIN front open front lock type double-sided contact FPC/FFC connector

Product description

Material Composition:

• Main body Housing: LCP Natural color LCP Nature Color (UL 94V-0)
• Lock Cover: LCP Black LCP Black (UL 94V-0)
• Terminal Terminal: Phosphorus Phosphor Bronze
• Positioning plate Stator: Brass Brass

Structure Design Mechanism:

1) Series name Series: PITCH 0.3mm FFC/FPC DUAL CONTACT SIDE CONNECTOR (H=0.9mm) rear rotation lock connector
2) PIN position PIN Position: See product drawing See drawing
3) Contact type Contact: Double-sided contact Double side contact
4) Terminal shape TML Soldering Type: SMT type
5) Suitable for FPC thick PCB Thickness: T=0.2±0.02mm
6) Plating Spec.: See product drawing See drawing
7) Solder coplanarity Coplanarity: 0.10mm MAX

Performance Parameter:

1) Standard status Standard conditions:
A Operating temperature: -40 ~ +85°C No condensation junction. Under ice conditions Without ice or dew
B Use humidity Operation Humidity: 20-85%RH
C storage temperature Storage Temperature: -10 ~ +50 ° C no condensation junction. Under ice conditions Without ice or dew
D Save humidity Storage Humidity: 20～85%RH
2) Rated voltage Rating Voltage: ambient temperature 20 ° C 50V (AC / DC) Ambient temperature 20°C 50V (AC/DC)
3) Rated current Rating Current : Ambient temperature 20 °C 0.5A / PIN Ambient temperature 20°C 0.5A / PIN
