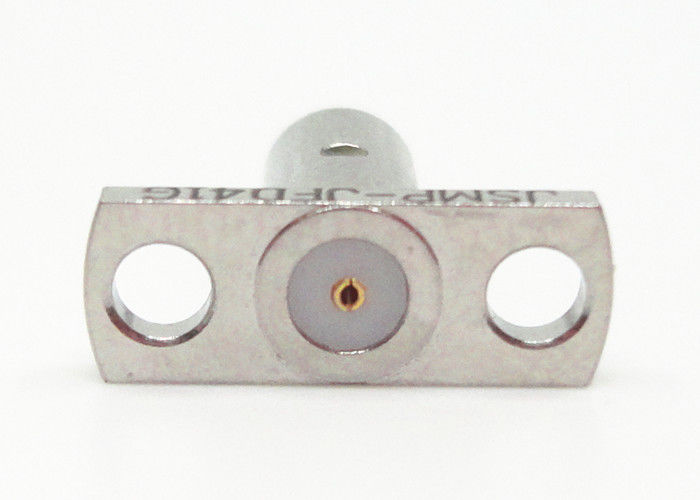

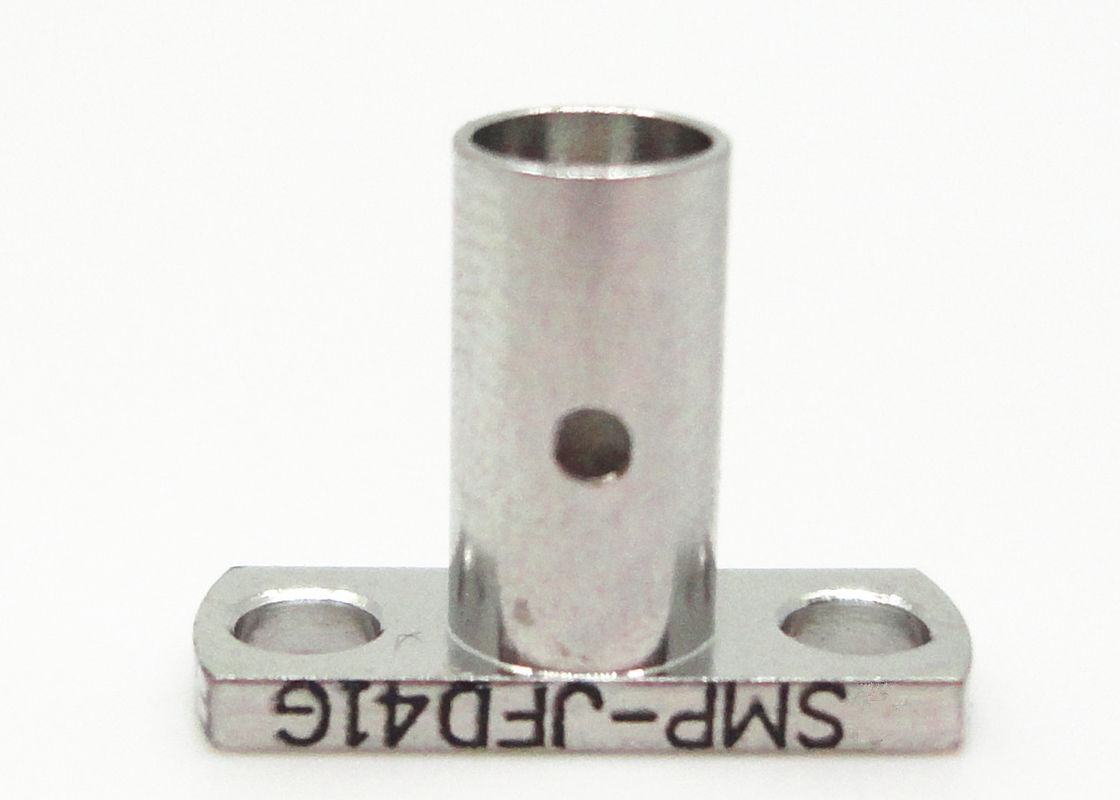

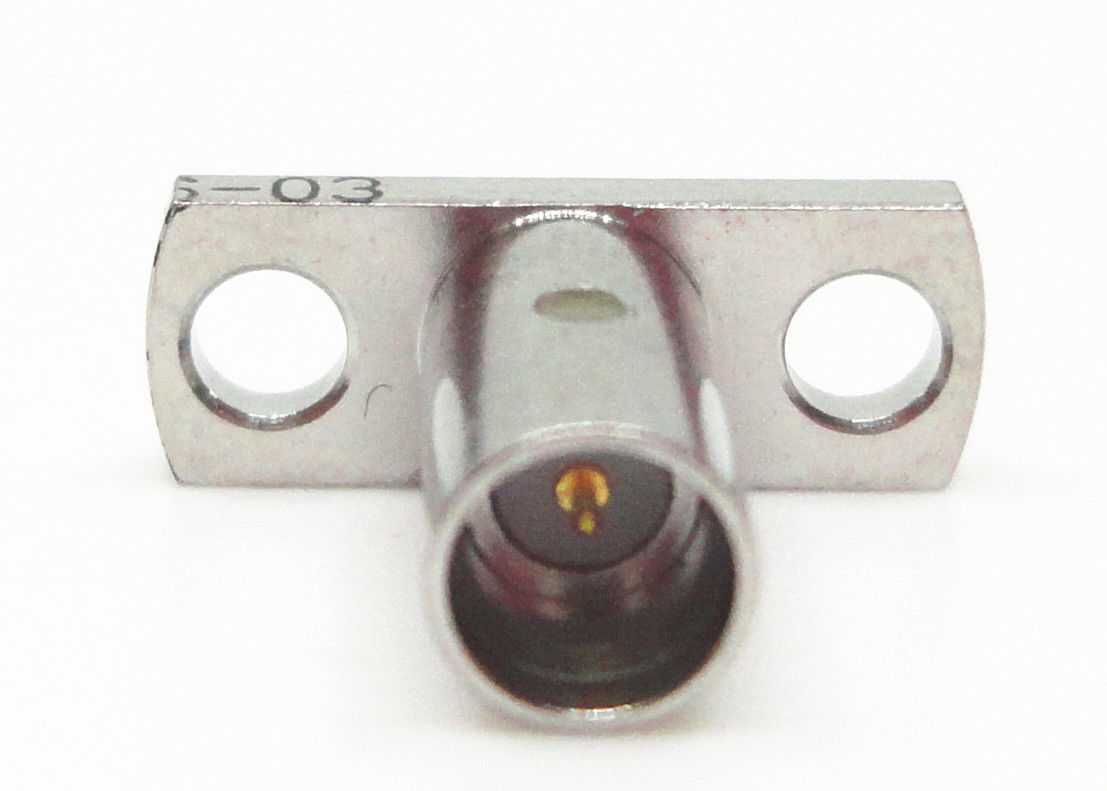

50Ω Impedance SMP Coaxial Connector Flanges Mount for Military

50Ω Impedance SMP Coaxial Connector Flanges Mount for Military

SMP is a sminiature push-on or snap coupling RF coaxial connector, which has the characters of small size, light weight, excellent seismic performance, and widely working broadband,etc. Its operating frequency up to 30GHz (our product of SMP connector can reach 40GHz), and the plug has three interface form-full detent, limited detent and smooth bore(including with braking). PCB mount, cable mount and in-series adaptors provide an interconnect solution for board-to-board, blind mate and rack-and-panel applications while maintaining package density. Apply for the install situation with the requirement of high reliability modular intensive.



Specification

Advantages:

1. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required

2. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc

3. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz

4. SMA RF connectors are available in quick connect, push-on or standard interface, straight, 90 degrees versions,as well as bulkhead, or 4 hole panel configurations

Applications
- Military
- Antennas
- Aerospace

- Broadband

- Telecommunications

- Instrumentation
- Phased array antennas

- Board-to-board interconnect

Detailed Drawing



Product Cataloge:

Packaging Details:
* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
