Place of Origin:
China
Certification:
CE ROHS

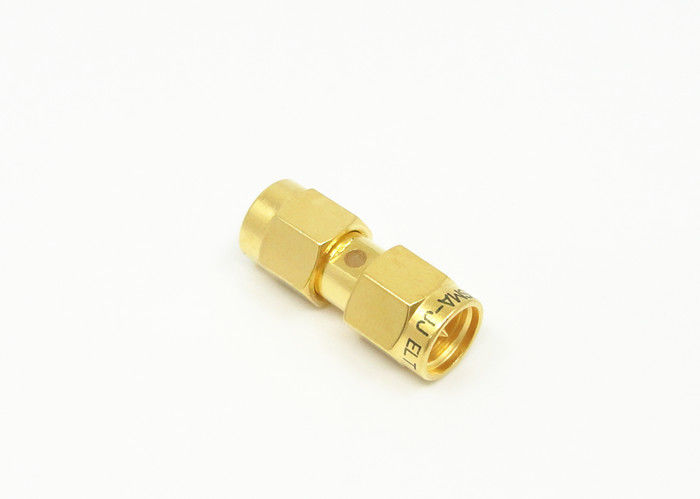

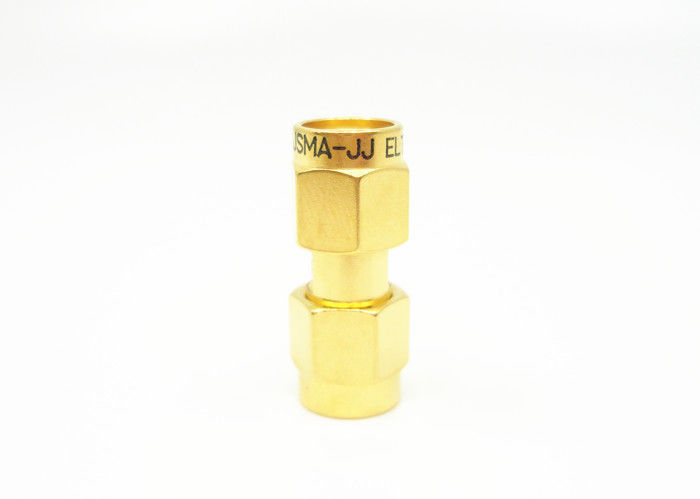

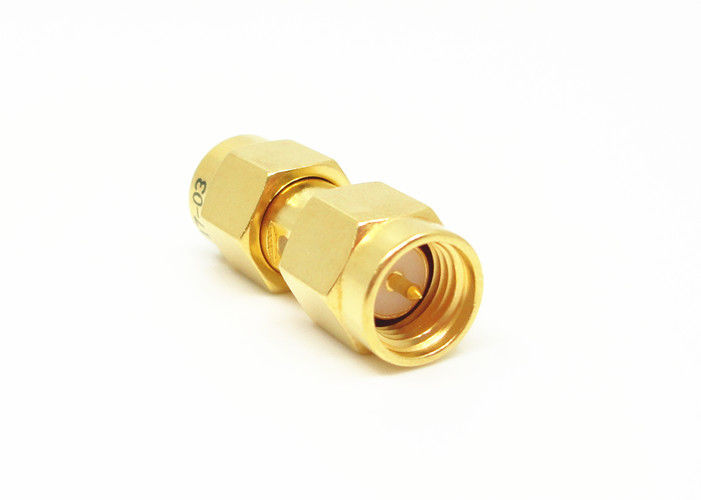

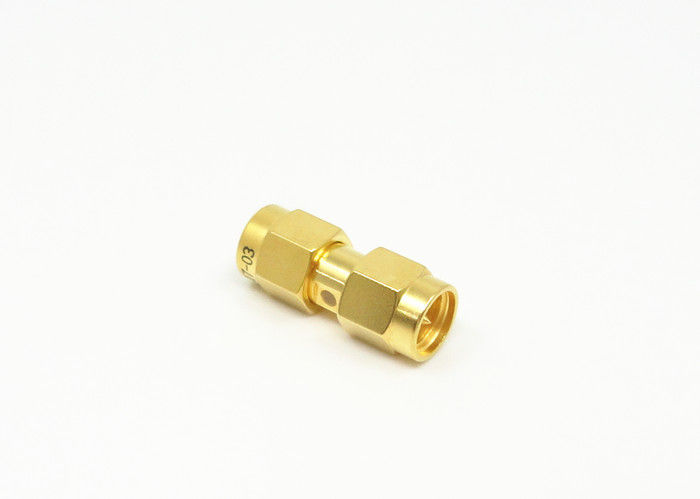

1. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead or 4 hole panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20 GHz).
Specifiacation:
Interface according to | IEC60169-15 |
Impedance | 50Ω |
Freqency Range | DC to 18GHz |
Insertion Loss | ≤0.30dB |
VSWR | ≤1.2(DC-6GHz) |
Insulation Resistance | ≥5000MΩ |
Center Contact Resistance | ≤3mΩ |
Outer Contact Resistance | ≤2mΩ |
Mating Cycles | ≥500 |
Temperature Range | -65-+165℃ |
Dielectric | PTFE |
Application:
* Aerospace
* Broadband
* Instrumentation
* Phased array antennas
* Telecommunications
* Board-to-board interconnect
* Base Station
* Mobile communication
* Outdoor facilities
* Radar,microwave
More Detail:
Related products:
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
