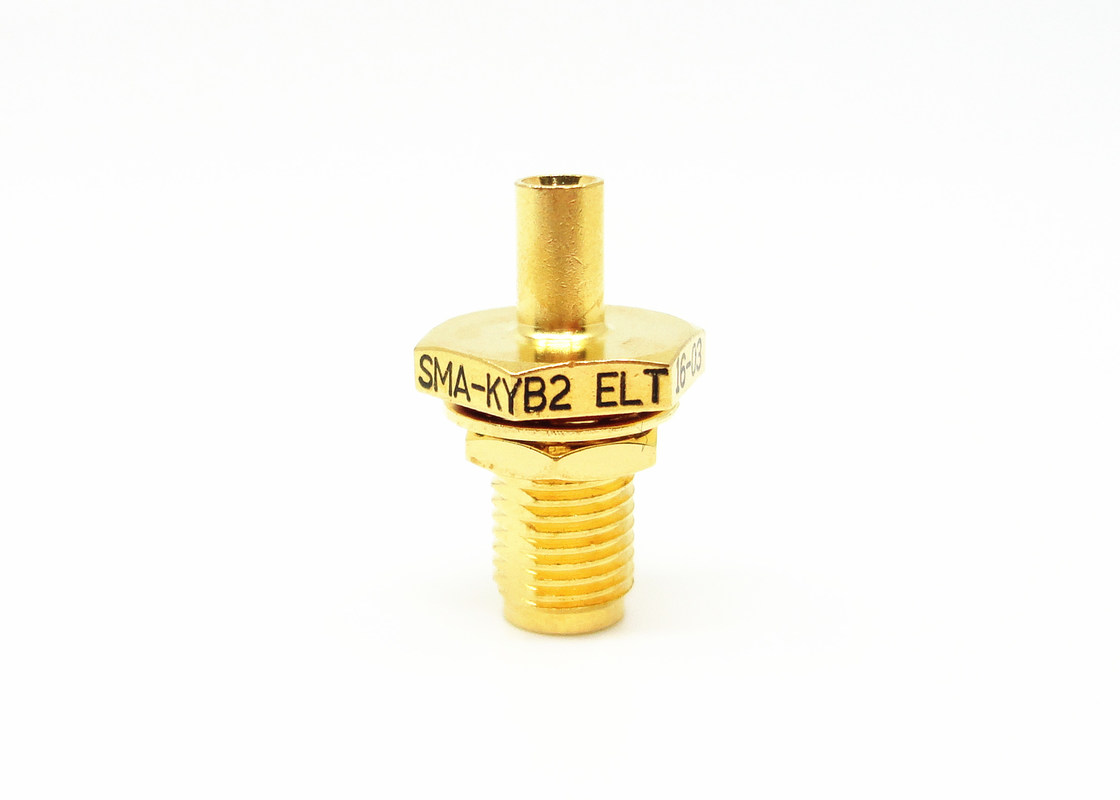

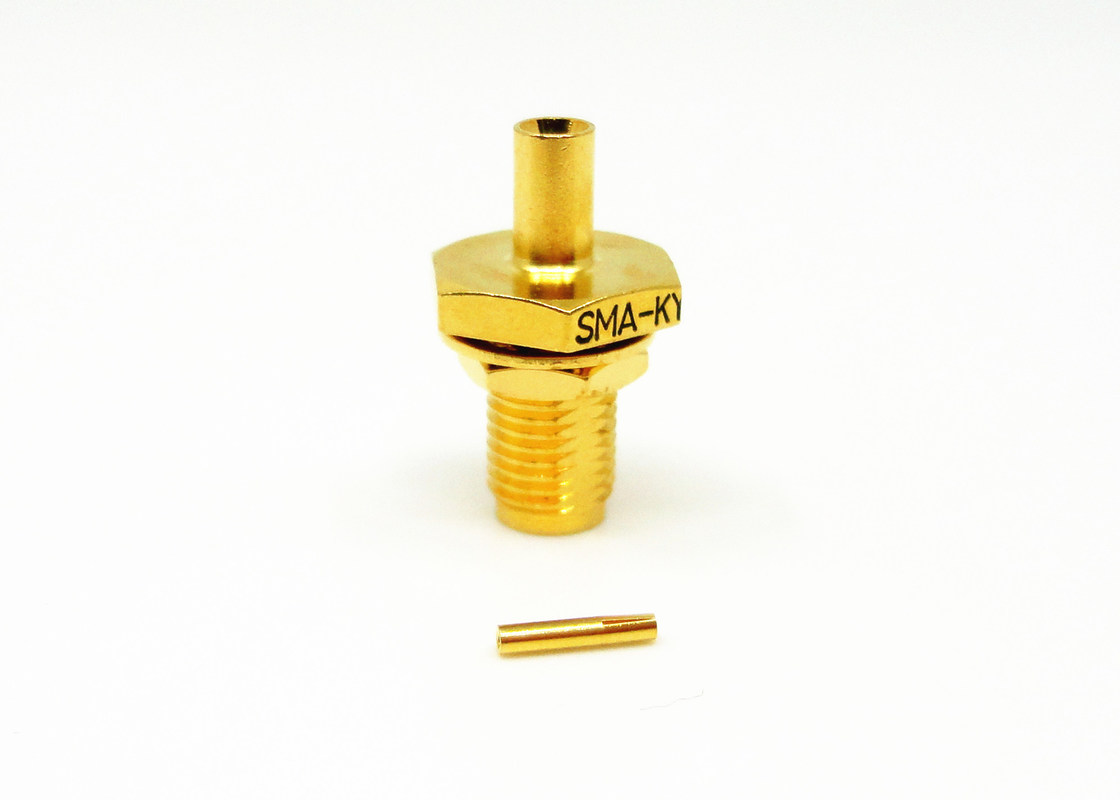

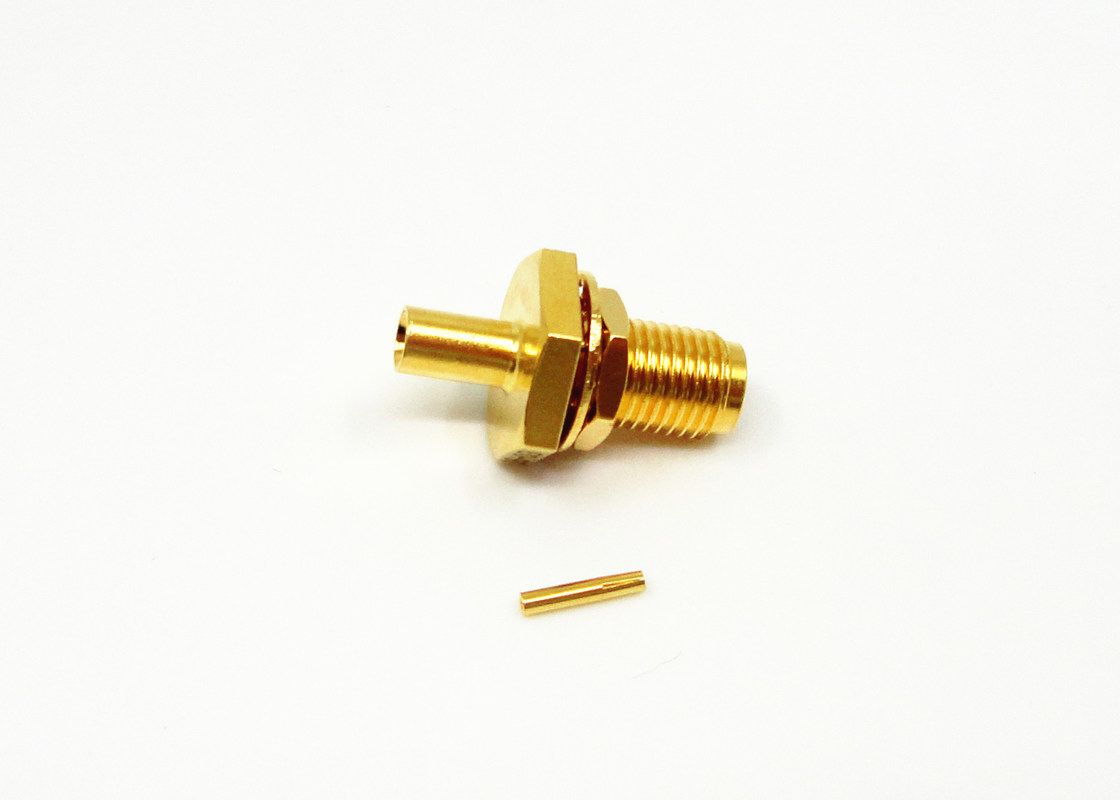

High Reliable Female Bulkhead RF SMA Cable Connector Gold Plated For 086 Cable

High Reliable Female Bulkhead RF SMA Cable Connector Gold Plated For 086 Cable

sma antenna connector

sma bulkhead connector

Place of Origin:

China

Certification:

CE ROHS

Contact Us
Request A Quote
Product Details
Gender:
Female
Model:
SMA-KYB2
Frequency:
DC~18GHz
Impedance:
50Ω
Cable Type:
086 Cable
Plating:
Gold Plated
Application:
RF
Product:
RF SMA Conector
Highlight:

sma antenna connector

,

sma bulkhead connector

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
Standard Export Carton
Delivery Time
Within 3 weeks
Payment Terms
T/T, L/C, Western Union
Supply Ability
100,000 Pieces Per Month
Product Description

High Reliable Female bulkhead RF SMA Cable connector for 086 cable



SMA series is a kinds of mini, high-frequency RF coaxial connector, it's developed and produced according to MIL-C-39012 by Xi'an Elite Electronic Industrial Co., Ltd. With characteristics of small volume,good bandwidth,superior electrical characteristics. It is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.



Specification:

Electrical Characteristics
Impedance 50Ω
Frequency Range Connect with solf cable DC~12.4GHz
Connect with semi-rigid cable DC~18GHz
Rated Voltage 335VRMS*
Dielectrics Voltage-resistance 1000VRMS*
Insulation Resistance ≥5000MΩ
Center Resistance Center Conductor ≤3.0mΩ
Outer Conductor ≤2.0mΩ
VSWR ≤1.3
Material & Mechanical Characteristics
Center Conductor Male Brass Gold plated
Female Sn-P Bronze Gold plated
Elastic Contact Beryllium bronze Nickel plated
Shell and other Metal Parts Brass Nickel plated
Stainless  Passivation
Crimping Sleeve Brass Nickel plated
Tightening torque of connection 0.79-1.13N .m
Durability 500 cycles
Sealing Ring Silicone Rubber
Insulators PTFE





Detailed Images:

Unit: mm

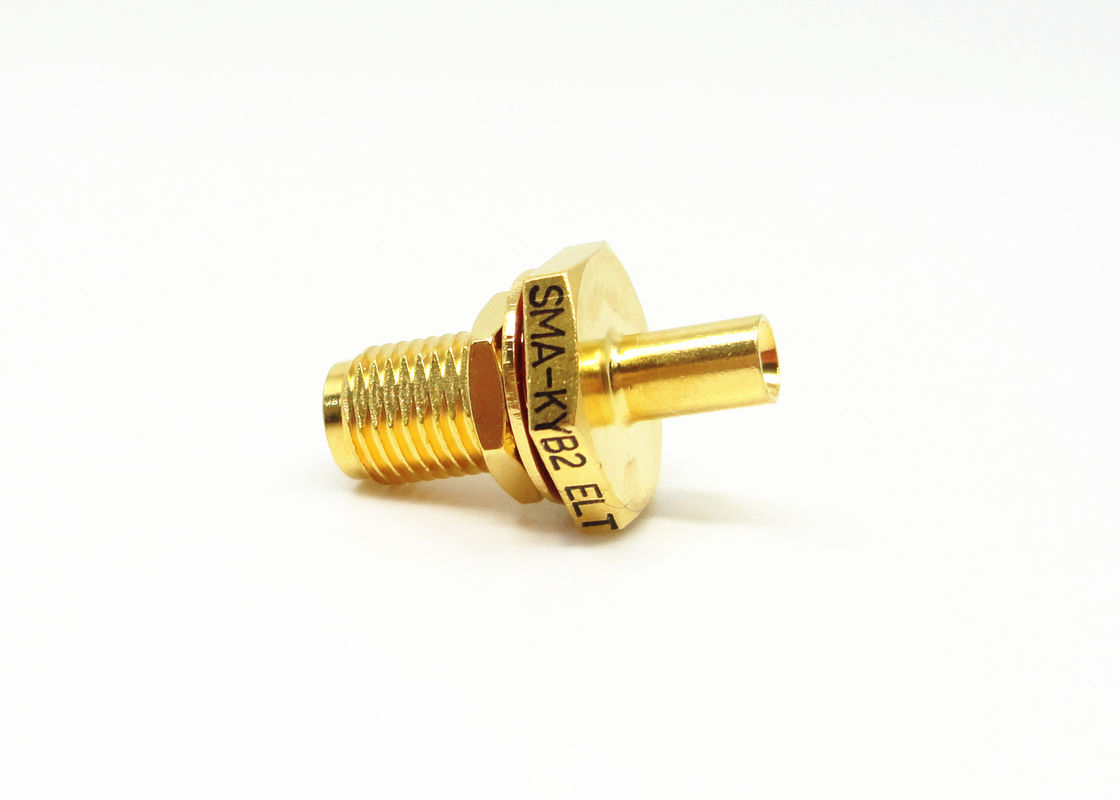

High Reliable Female Bulkhead RF SMA Cable Connector Gold Plated For 086 Cable 0



Model No. Description L L1
SMA-KYB2 SMA female bulkhead connector for .086 cable 2.5 19
SMA-KYB2-1 SMA female bulkhead connector for .086 cable 4.6 17.5

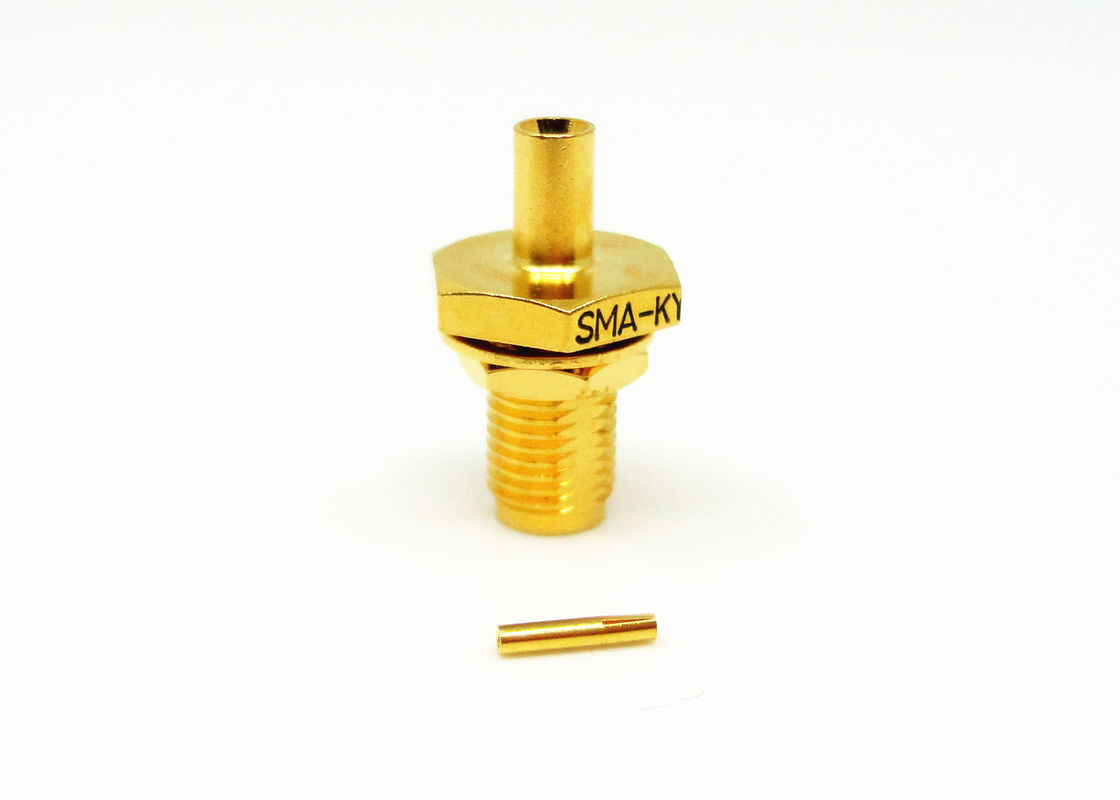

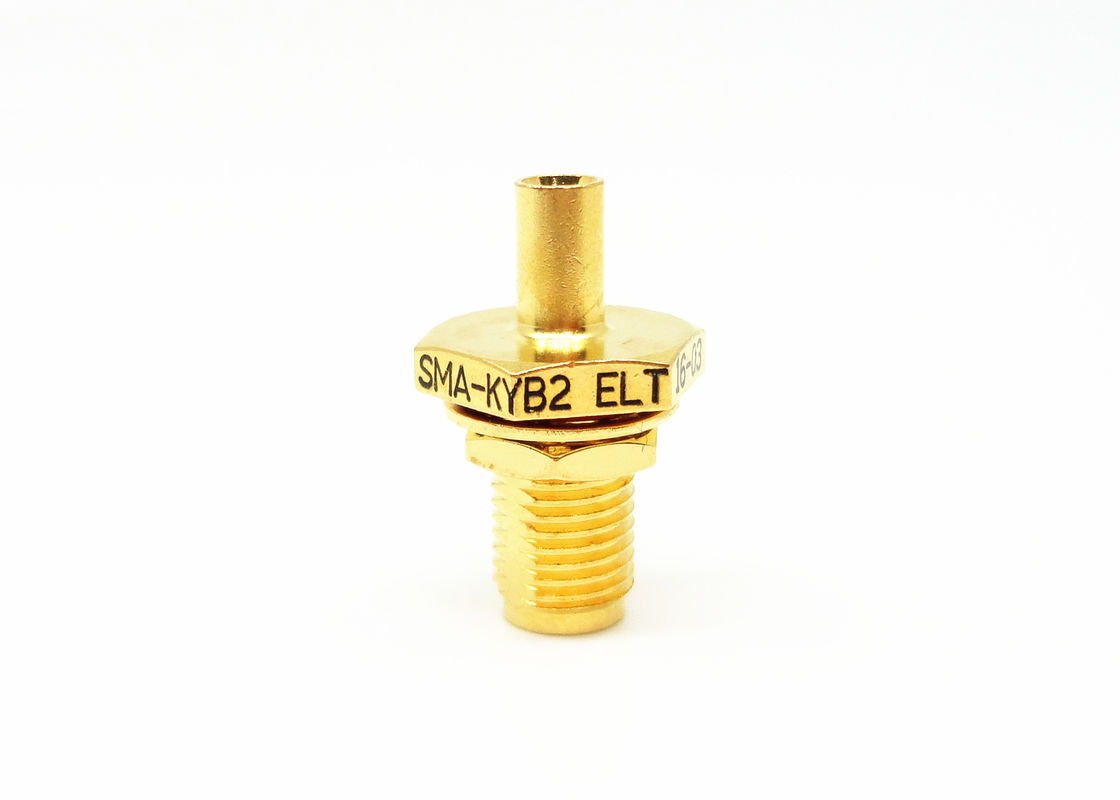

     High Reliable Female Bulkhead RF SMA Cable Connector Gold Plated For 086 Cable 1                 High Reliable Female Bulkhead RF SMA Cable Connector Gold Plated For 086 Cable 2



Advantages:



1. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required

2. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc

3. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz

4. SMA RF connectors are available in quick connect, push-on or standard interface, straight, 90 degrees versions,as well as bulkhead, or 4 hole panel configurations



Application:

*Network

*Radar

*Automotive

*Satcom

*Computer/LANs

*Broadband
*Instrumentation
*Phased array antennas
*Telecommunications
*Aerospace
*Board-to-board interconnect





Packaging Details:
* Standard Export Carton
* According to clients' requirements



NOTE:
We have over 10,000 types of  Connector, if the connector you are using is not found, please contact us with your details.

Send your inquiry directly to us
