SMA series is a kinds of mini, high-frequency RF coaxial connector, it's developed and produced according to MIL-C-39012 by Xi'an Elite Electronic Industrial Co., Ltd. With characteristics of small volume,good bandwidth,superior electrical characteristics. It is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.
Specification:
| Electrical Characteristics | |||
| Impedance | 50Ω | ||
| Frequency Range | Connect with solf cable DC~12.4GHz | ||
| Connect with semi-rigid cable DC~18GHz | |||
| Rated Voltage | 335VRMS* | ||
| Dielectrics Voltage-resistance | 1000VRMS* | ||
| Insulation Resistance | ≥5000MΩ | ||
| Center Resistance | Center Conductor | ≤3.0mΩ | |
| Outer Conductor | ≤2.0mΩ | ||
| VSWR | ≤1.3 | ||
| Material & Mechanical Characteristics | |||
| Center Conductor | Male | Brass Gold plated | |
| Female | Sn-P Bronze Gold plated | ||
| Elastic Contact | Beryllium bronze Nickel plated | ||
| Shell and other Metal Parts | Brass Nickel plated | ||
| Stainless Passivation | |||
| Crimping Sleeve | Brass Nickel plated | ||
| Tightening torque of connection | 0.79－1.13N .m | ||
| Durability | 500 cycles | ||
| Sealing Ring | Silicone Rubber | ||
| Insulators | PTFE | ||
Application:
*Network
*Radar
*Automotive
*Satcom
*Computer/LANs
*Broadband
*Instrumentation
*Phased array antennas
*Telecommunications
*Aerospace
*Board-to-board interconnect

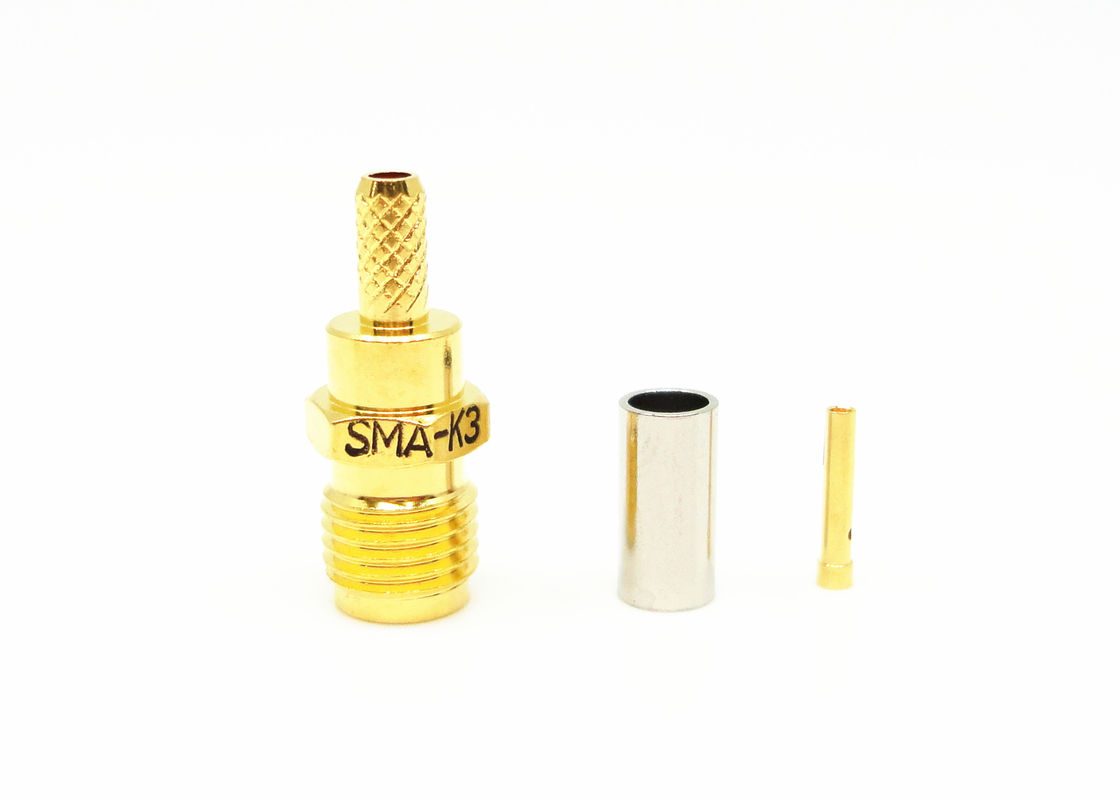

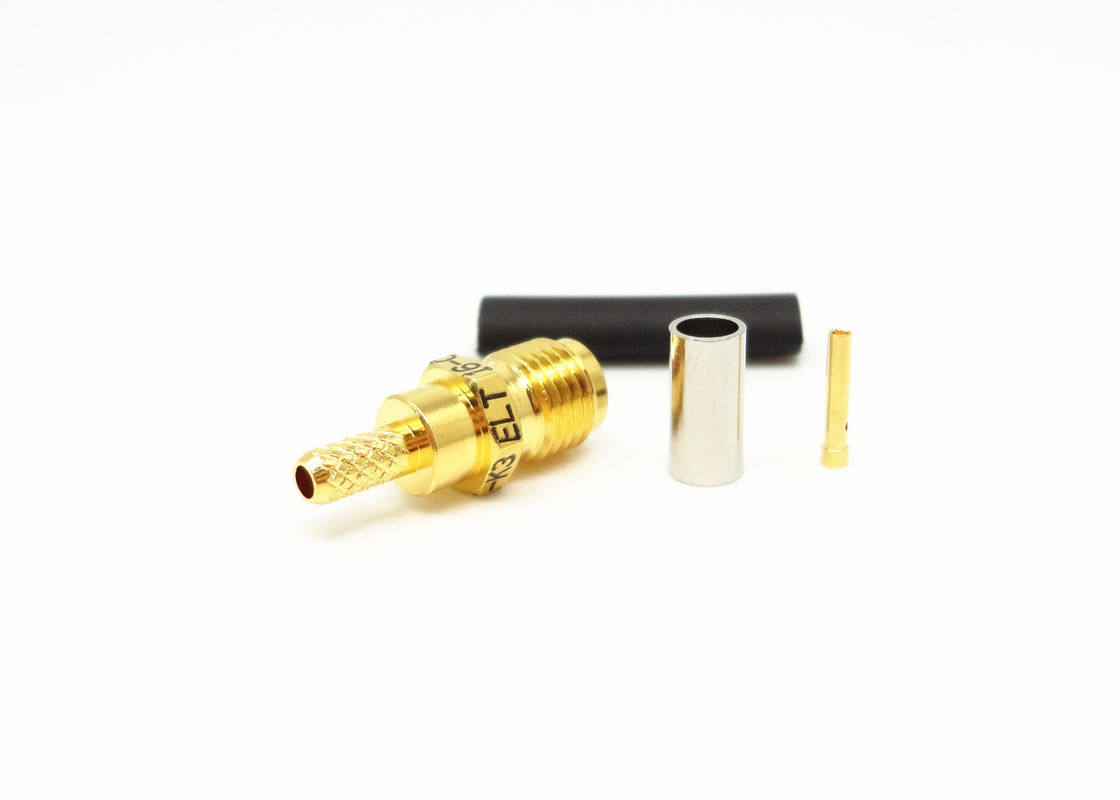

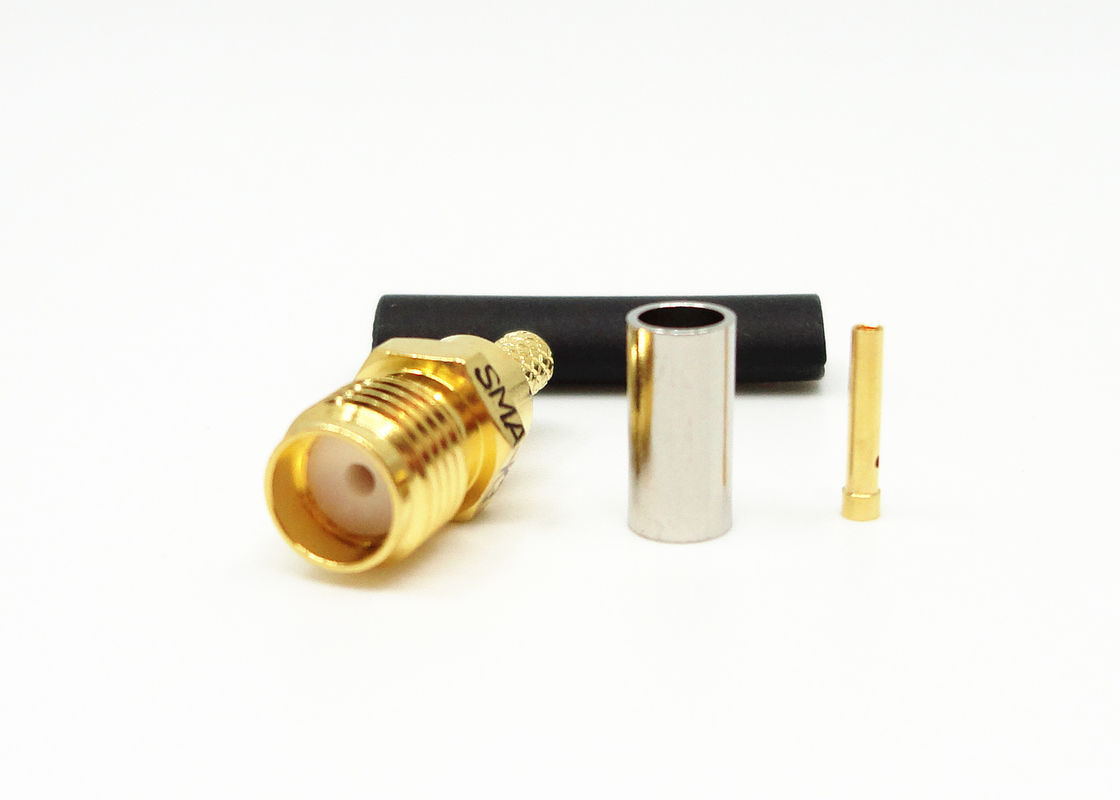

Detailed Images:
| Model No. | Description | L(mm) | L1 | L2 | Cable Type |
| SMA-K3 | SMA female connector for RG316 cable | 17 | 5.6 | 8 | RG316 |
| SMA-K4 | SMA female connector for SFF cable | 19.9 | 8.5 | 10 | SFF-50-2-2 |
| SMA-K5G | Stainless steel female connector for SFF cable | 22 | 10 | 12 | SFF-50F3-1 |
