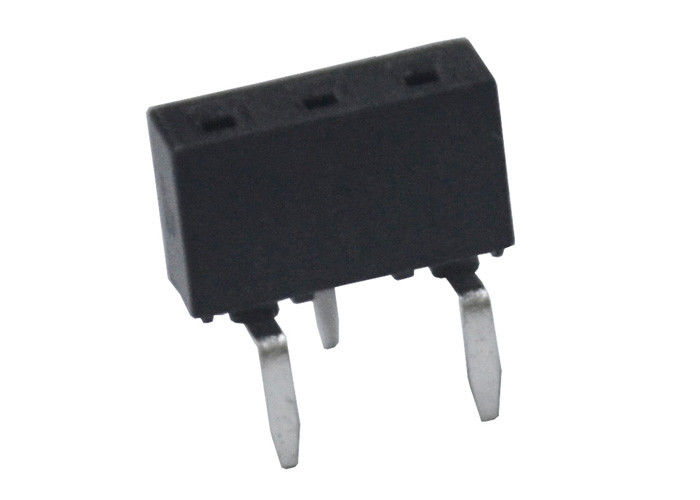

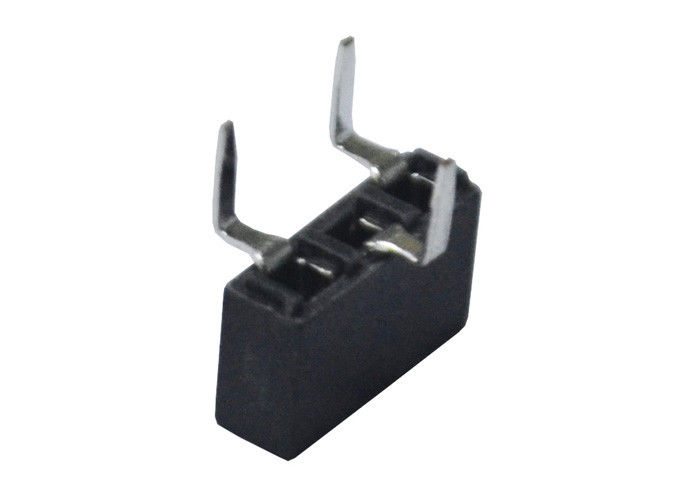

Black Single Row Header Connector 2.54 Female Header SMT Type Fireproof
| Product name: 2.54mm female header connector | ||
| 1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance. | ||
| 2. product function :Its function is to act as a bridge between the blocked or isolated circuits, and to take on the task of current or signal transmission. | ||
| 3. scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection. |
Specifications
1. Pitch:2.54mm(0.1'')
2. Connector Name: PCB Connector/Female Pin Header
3. Insulation Material:PA9T UL 94-V0
4. Contact Material: Copper Alloy
5: Mounting Type: Through Hole
6: Number of Row: Single Row
7: Contact Finish: Gold Over Nickel
8: Termination: Solder
9: Color:Black
10: Current Rating:2A
11: Withstand Voltage:500V AC/DC
12: Contact Resistance:20mΩ Max
13: Pin Length: Customization
14: Pin Available:2Pins to 80Pins
15. Plastic Height: 5.0mm
16. Fastening Type:Push-Pull
17. Style:Board to Board
18. Contact Type:Female Socket
Packaging & Shipping
Packaging:
1) Packed in polybag/tray ,and cartons (bulk package )
2) Private packing and label service are available as per your requirement
Shipping
1.The parts from us are sure to have quality warranty, and they are double tested before shipping.
2.The items can be sent within 3-7 working days after we received the payments.
3.As for mass production, we will confirm the delivery in advance.We will send you’re the products by UPS/DHL/TNT/ FedEx.
FAQ
Q: Do you have stock?
A: We don’t have stock; we’ll start production after receiving PO.
Q: How can I get quotation?
A: It is helpful for us to recommend the right item if we know your detail description or specifications. Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.
Q: Can I have samples?
A: Samples are available for evaluation.
Q: Is OEM & ODM available?
A: OEM&ODM are welcome.
Q. Which payment can be accepted:
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
