Place of Origin:
China
Certification:
ISO9001, SGS, Rohs, Reach

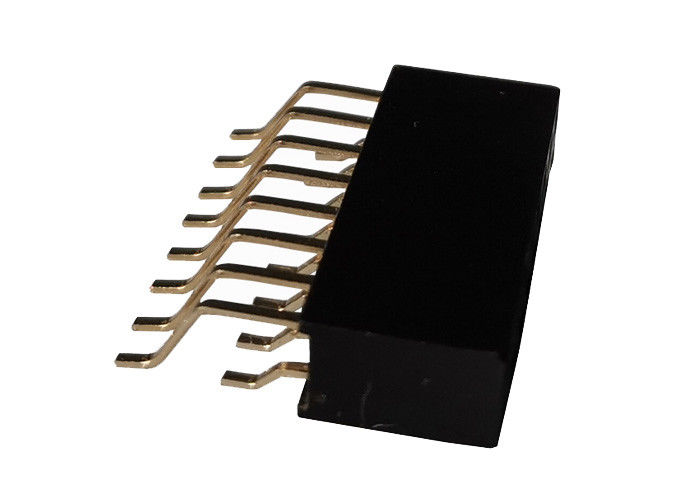

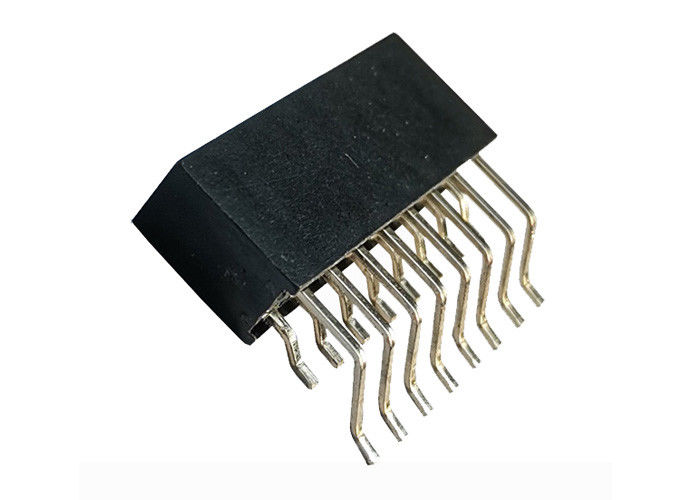

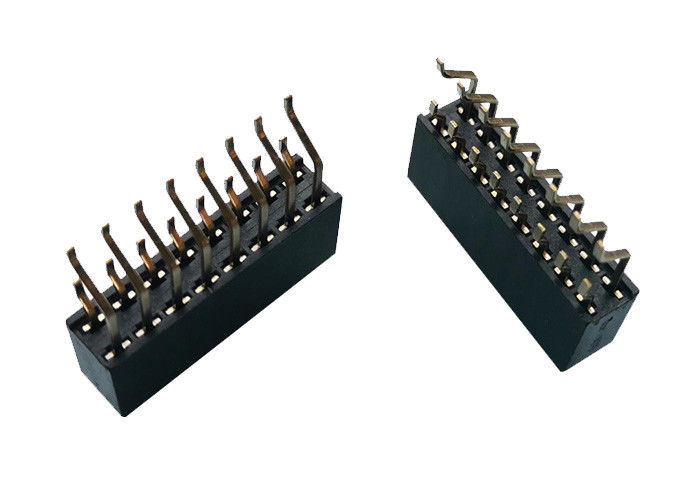

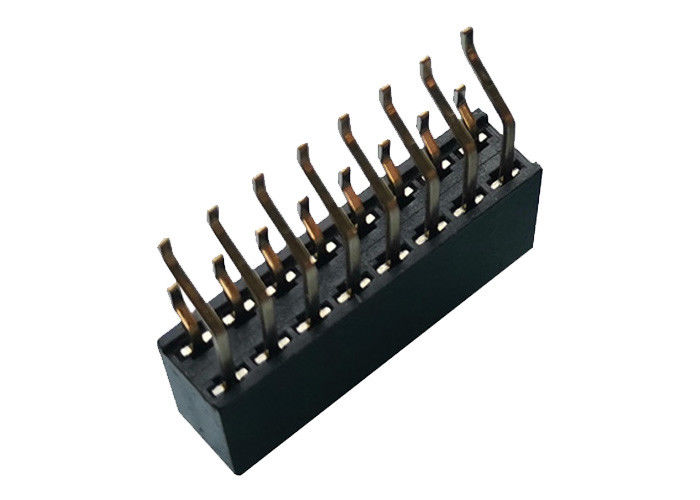

Double Row Female Header Connector 2.54mm SMT Type 16 Pin With Horizontal
Specifications:
| Products Name | Female Header/PCB Connector |
| Pitch | 2.54mm |
| Current Rating | 3.0 AMP |
| Contact Resistance | 30 mΩ Max |
| Withstand Voltage | 500 V AC/DC |
| Insulation Resistance | 1000 MΩ Min |
| Operation Temperature | -40℃ to 105℃ |
| Contact Material | Coppy Alloy |
| Contact Plating | Au or Sn Over Ni |
| Insulator Material | PA6T+30 GF(UL94-V0) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Number of Row | Dual |
| Plastic Height | 8.5 mm |
| Contact Finish | Gold Flash |
| Pins available | 2 Pins to 80 Pins |
| Color | Black |
| Packaging | Tube |
Product Name: female header connector
1. features: the use of a wide range of environmental protection fireproof antioxidant strong conductivity.
2. material: PA9T/PBT/ brass or phosphor bronze; dielectric materials: plastic UL 94V-0
3. scope of application: general are widely used in electronics, electrical appliances, instrument connection device mainly plays the role of a current or signal transmission. Usually with pin supporting the use, composition of board to board connection. Or with electronic wiring harness terminal supporting the use of, constitute the board of line connection.
4. It is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. As the most reliable connection plate to plate, wire to board provides.
Payment:
We can accept T/T, L/C, Western Union, and Money Gram, you can choose the way you like.
Please make sure that you have completed all the detailed information like contact person, address, zip code, and telephone number when filling in your information.
Delivery Time:
3 -7 days after receiving your payment(according to your quantity).
Feedback:
Buyer’s early confirmation will be highly appreciated after receiving the goods.
Because your feedback is vital to our business’s development, we sincerely invite you to leave positive feedback for us, if you are satisfied with our products and services.
What we can do:
All of our products will be 100% inspected before shipment.
We can design products according to customer demand.
Support imprint your logo on products.
