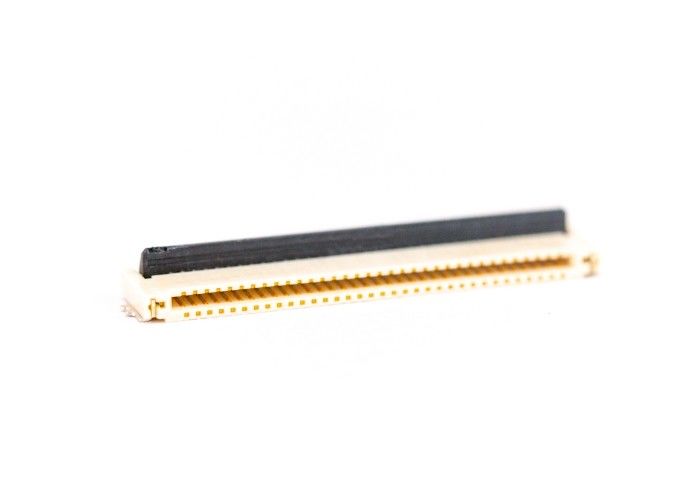

Ffc Breakout Board , 24 Pin Fpc Connector 0.10mmSolder Coplanarity Coplanarity

0.5MM pitch plastic height 1.8MM 6-70PIN front open front lock type double-sided contact FPC/FFC connector

The spacing of the conductors. The pitch typically refers to the distance from the center of one conductor to the center of its neighboring conductor. A single FFC can have different pitches between different conductors on the same cable, however this is uncommon. FFC cables are available in many pitches, such as 0.500 mm, 0.625 mm, 0.635 mm, 0.800 mm, 1.00 mm, 1.25 mm, 1.27 mm, 2.00 mm, 2.54 mm, but the most common pitches are 0.500 mm and 1.00 mm. Custom Pitch and Multiple Pitch FFC are available upon special request.

Product description

Material Composition:

• Main body Housing: LCP Natural color LCP Nature Color (UL 94V-0)
• Lock Cover: LCP Black LCP Black (UL 94V-0)
• Terminal Terminal: Phosphorus Phosphor Bronze
• Positioning plate Stator: Brass Brass

Structure Design Mechanism:

1) Series name Series: PITCH 0.3mm FFC/FPC DUAL CONTACT SIDE CONNECTOR (H=0.9mm) rear rotation lock connector
2) PIN position PIN Position: See product drawing See drawing
3) Contact type Contact: Double-sided contact Double side contact
4) Terminal shape TML Soldering Type: SMT type
5) Suitable for FPC thick PCB Thickness: T=0.2±0.02mm
6) Plating Spec.: See product drawing See drawing
7) Solder coplanarity Coplanarity: 0.10mm MAX

Performance Parameter:

1) Standard status Standard conditions:
A Operating temperature: -40 ~ +85°C No condensation junction. Under ice conditions Without ice or dew
B Use humidity Operation Humidity: 20-85%RH
C storage temperature Storage Temperature: -10 ~ +50 ° C no condensation junction. Under ice conditions Without ice or dew
D Save humidity Storage Humidity: 20～85%RH
2) Rated voltage Rating Voltage: ambient temperature 20 ° C 50V (AC / DC) Ambient temperature 20°C 50V (AC/DC)
3) Rated current Rating Current : Ambient temperature 20 °C 0.5A / PIN Ambient temperature 20°C 0.5A / PIN
