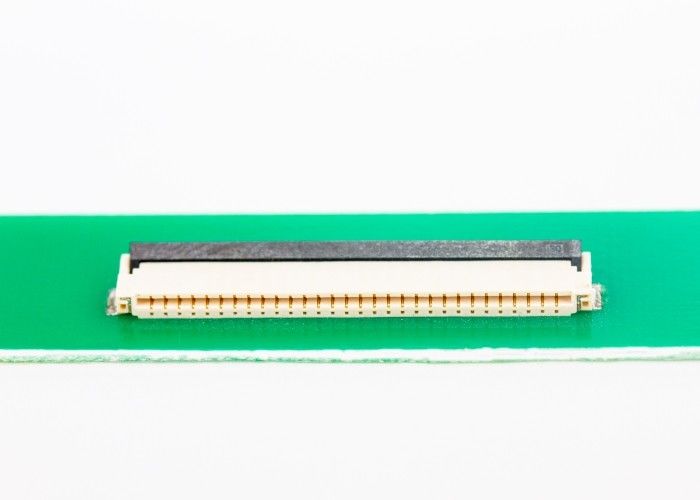

0.5MM pitch plastic height 1.8MM 6-70PIN front open front lock type double-sided contact FPC/FFC connector
Product description
| Rated voltage | 50V(AC/DC) |
| Rated current | 0.5A/PIN |
| Cable retention | ＞0.3N/PIN |
| Contact impedance | 100mΩ Max |
| Insulation resistance | 50MΩ Min |
| cable thickness | 0.2mm+/-0.02mm |
| Welding method | SMT automatic patch |
| Packing | Suitable for SMT patch tape packaging |
| Packing quantity | 3000PCS/volume |
Material Composition:
Structure Design Mechanism:
1) Series name Series: PITCH 0.3mm FFC/FPC DUAL CONTACT SIDE CONNECTOR (H=0.9mm) rear rotation lock connector
2) PIN position PIN Position: See product drawing See drawing
3) Contact type Contact: Double-sided contact Double side contact
4) Terminal shape TML Soldering Type: SMT type
5) Suitable for FPC thick PCB Thickness: T=0.2±0.02mm
6) Plating Spec.: See product drawing See drawing
7) Solder coplanarity Coplanarity: 0.10mm MAX
Performance Parameter:
1) Standard status Standard conditions:
A Operating temperature: -40 ~ +85°C No condensation junction. Under ice conditions Without ice or dew
B Use humidity Operation Humidity: 20-85%RH
C storage temperature Storage Temperature: -10 ~ +50 ° C no condensation junction. Under ice conditions Without ice or dew
D Save humidity Storage Humidity: 20～85%RH
2) Rated voltage Rating Voltage: ambient temperature 20 ° C 50V (AC / DC) Ambient temperature 20°C 50V (AC/DC)
3) Rated current Rating Current : Ambient temperature 20 °C 0.5A / PIN Ambient temperature 20°C 0.5A / PIN
