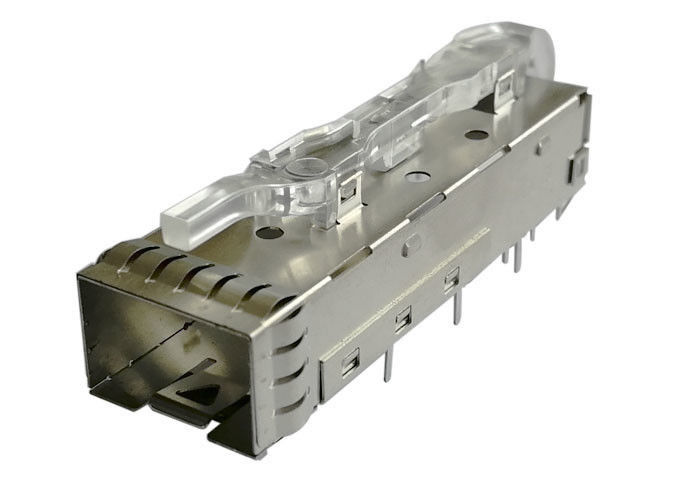

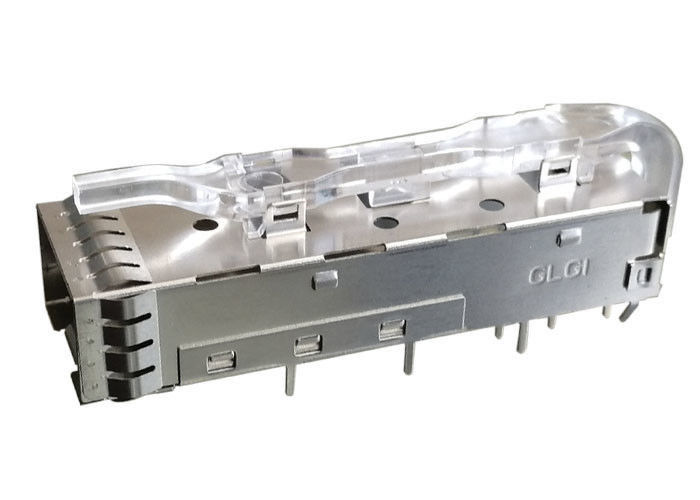

3.0 mm Solder Post PIN 1 x 1 SFP Cage Assembly With Light Pipe EMI Spring Finger

3.0 mm Solder Post PIN 1 x 1 SFP Cage Assembly With Light Pipe EMI Spring Finger

Features

• Available individually or as a kit (SFPK Series)

• Available with single or multi-port (panel mount) cages

• Convenient kit with SFP connector and cage

• 3D foot design for improved press-fit retention and contact to host board holes

• One-piece, stainless steel construction

• Low emission design via fold-back spring fingers – no openings for radiation to pass through

• Enhanced transceiver kick-out springs

• Simple and fast installation / removal

• Host board holes not damaged when cage is removed

• Heat transfer windows on all SFP cage surfaces

• Supports MSA compliant host board layouts and transceiver designs

Benifits:

• MT design packaged in tape and reel
• Ensures easy pick-and-place to the PCB
• Single port cages available in press-fit, solder-post and PCI (1°) versions; ganged cages available in press-fit version
• Enables use with various board thicknesses and assembly processes
• Press-fit tails accommodates belly-to-belly applications for single and ganged cages
• Ensures best use of PCB real estate

 Overview:

3) Heat Dissipation

Our thermally enhanced solutions offer better front-to-back and back-to-front airflow through the cages, providing better heat dissipation for industry leading thermal performance.

4) Signal Quality

To enhance signal quality, the SFP portfolio focuses on the latch-plate area to reduce EMI and avoid degradation of circuit performance and ensure compliance to standards. Products are offered in both an EMI spring and EMI elastomeric gasket versions to meet customer system requirements.

5) Key Features and Benefits, Performance and Flexibility

• Offers cages in single-port, ganged (1xN) and stacked (2xN) configurations; belly-to-belly mounting cages also offered
• Features elastomeric gaskets or springs for EMI containment
• Offers heat sink and light pipe options
• Stacked cages include an integrated high-speed connector
• Complementary to the SFP portfolio of direct-attach copper cable assemblies and LC optical connectors and cable assemblies
• Cages are available for PCI card applications ( one-degree mounting angle )

6) Applications

by Product

• Enterprise Storage: Server
• Networking: Router, Optical Transport Switch
• Telecommunications: Remote Radio Head, Base Station Switch

by Protocol

• SONET
• Gigabit Ethnet
• Fiber Channel
• Serial data transmission

Product Structure:

• 1 x 1 Single Port;
• Stampled and Formed Metal Cage;
• With Light Pipes, provides port status
• Without Heat Sink, can be customized as required
• Mount Type, Can be customized as required
• Cage Material : Copper Alloy
• CLIP : Stailness Steel
• With or Without Elastomeric gasket
• Cage Length : 53.4 mm
• Cage Width : 14.0 mm
• Cage Height : 9.55 mm

Customization Services

• 1 x n or 2 x n Structures
• With or without Light pipes
• With oe without Heat Sink
• With or without Elastomeric or metal gasket
• Cage with or without Integarted Connector
• With or Without EMI Spring Finger

Advantage

• 20 years experiences in Variety Connectors
• 1500 Employees
• 58 R&D Engineers.
• 22000 square meters Factory
• Has Automatic Assembly Workshops
