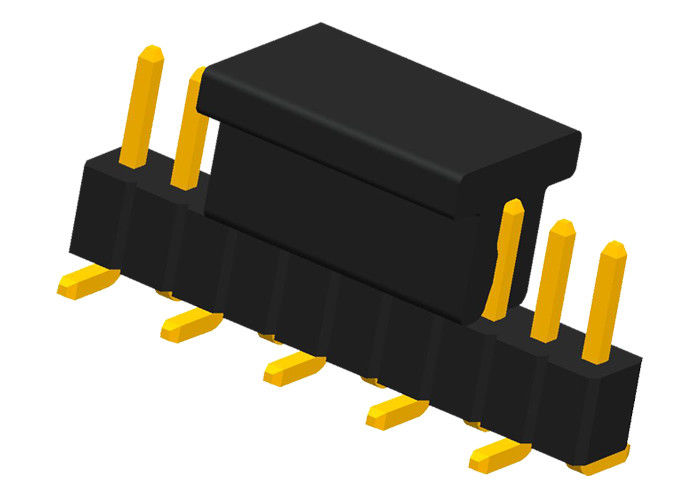

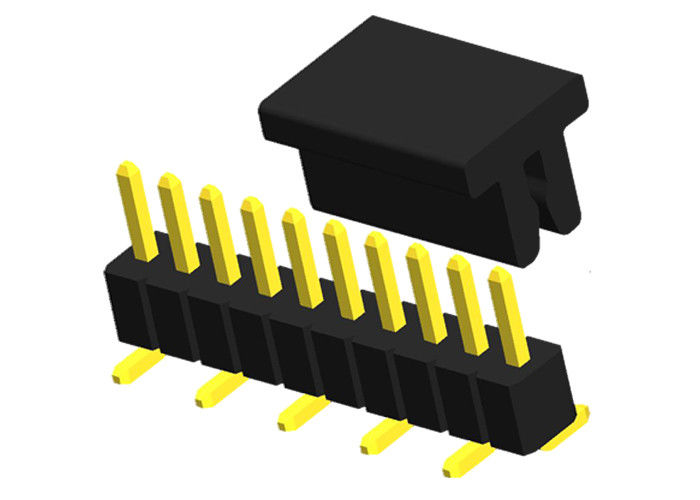

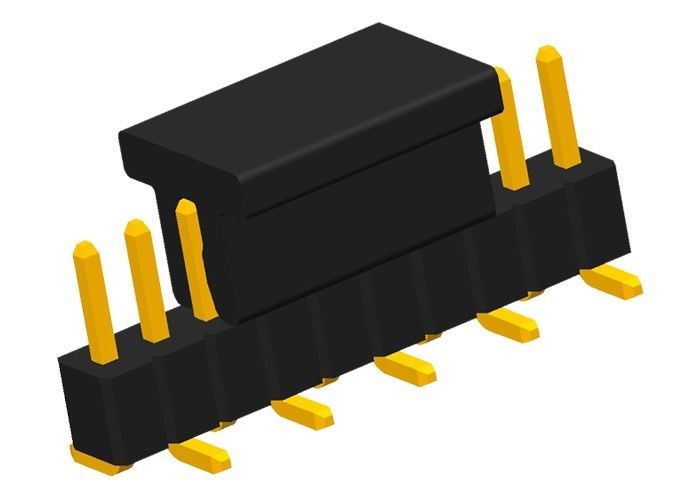

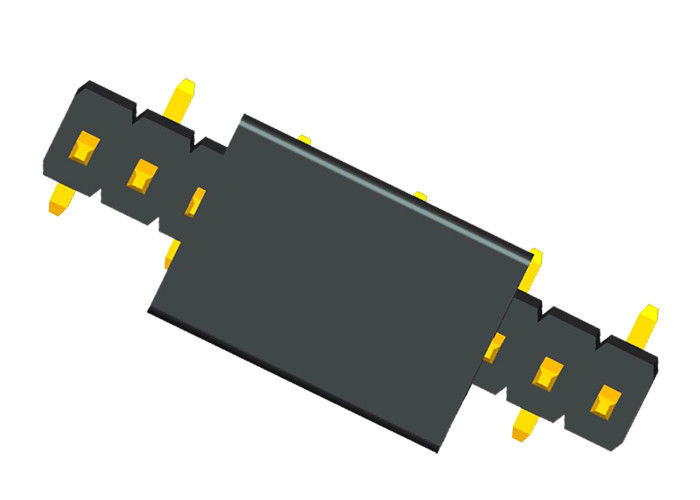

SMT Pin Header 10 Pin Single Row CAP Right Angle Header Connector Gold Flash
Category
1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96, 5.08mm;
2. According to the height and quantity of plastic (such as single plastic, double plastic, three plastic, etc.).
3. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;
4. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);
5. According to whether it needs to be increased and whether it needs to be divided with positioning columns, there are two kinds of positioning columns: one is the internal positioning column, the other is the ear positioning column;
6. Number of stitches: 02 to 80;
7. Packaging: bag, roll bag, bulk, tube, CAP/Mylar + reel tape packing;
8. Surface treatment: gold plating 1u/3u/5u/10u and even more, thick gold, tin plating, nickel plating (1u=1uinch=1/39.37μm);
9. According to the Height: 1.0/1.5/2.5mm;
10. Material:
10-1: Terminal part: brass, or phosphor bronze;
10-2: Insulator part: PBT, PA46, PA6T, PA66, PA9T, LCP plastic UL94V-0 (UL94 is the standard, V-0 is the fire rating);
| Name | Pin Header Connector/PCB Connector |
| Pitch | 1.0mm |
| Type | SMT |
| Insulator Color | Black/Grey |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 0.75A |
| Contact Resistance(max) | 3m ohm Max |
| Operating Voltage | 40V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
| Mounting Type | Through Hole/Horizontal/vertical mount smt |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 2 Pins to 80 Pins |
