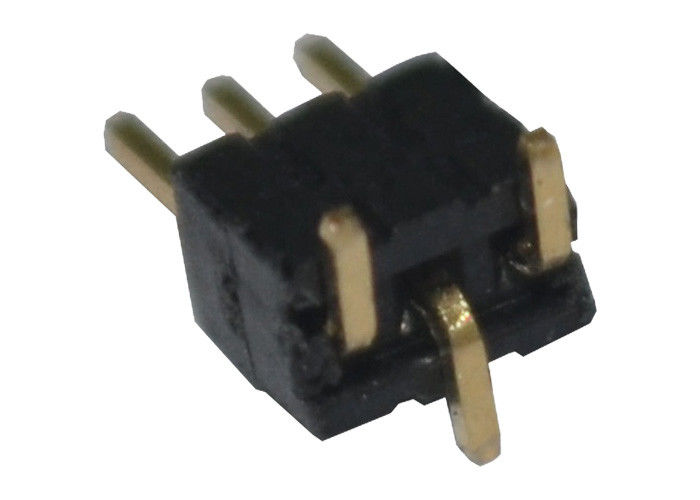

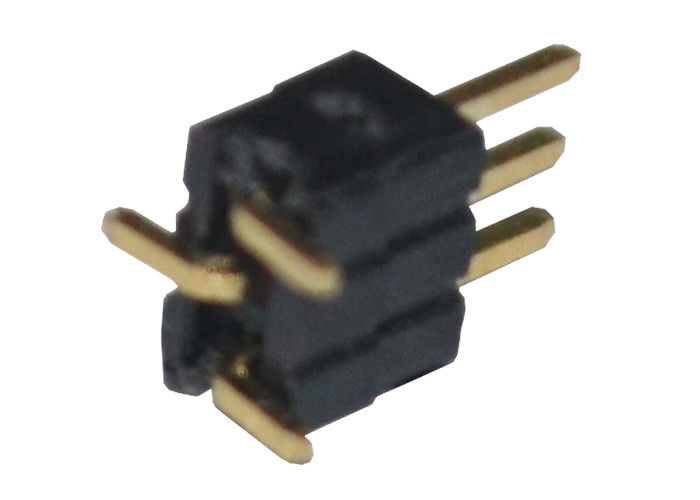

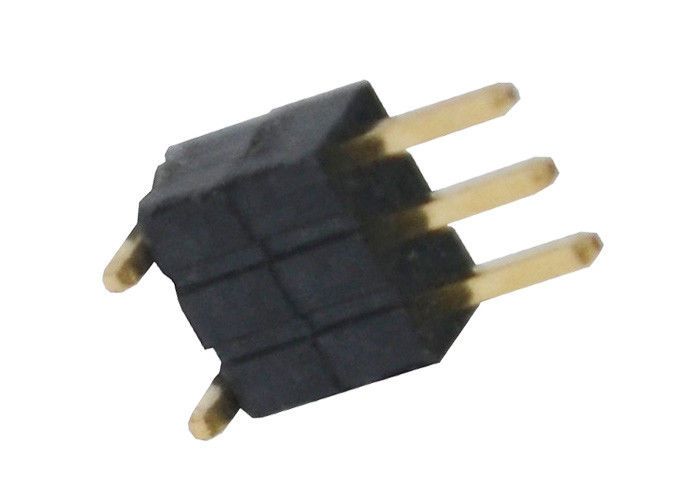

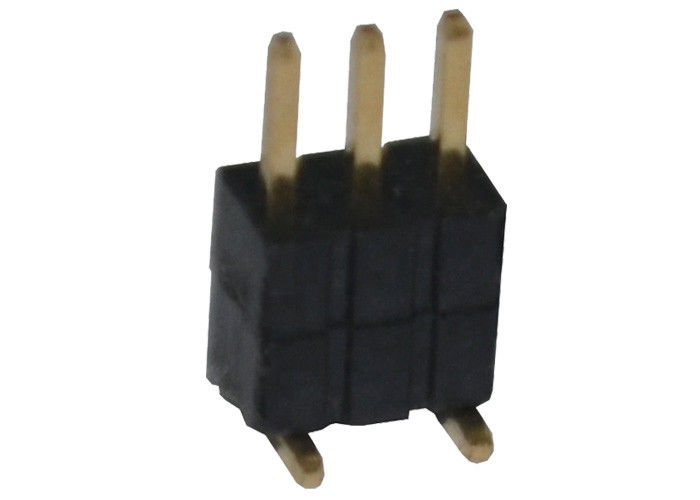

Plastic 3 Pin Single Row Header Connector 1.27mm Vertical Mount SMT Type
What is the Pin Header Connector?
Pin Header Connector are connection systems mounted on PCBs. Typically PCB Connectors are used to transfer signals or power from one PCB to another, or to or from the PCB from another source in the equipment build. They provide an easy method of Design for Manufacture, as the PCBs are not hard-wired to each other and can be assembled later in a production process.
Product Application:
Pin header is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. As the most reliable connection plate to plate, wire to board provides.
| Name | Pin Header Connector/PCB Connector |
| Pitch | 1.27mm |
| Plastic Hight | 3.0mm |
| Type | SMT Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 1A |
| Contact Resistance(max) | 20m ohm Max |
| Withstanding Voltage | 500V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
| Mounting Type | Vertical mount smt |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 2 Pins to 80 Pins |
Category
1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96, 5.08mm;
2. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);
3. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;
4. According to the Height: 1.0/1.5/2.5mm;
5. Number of stitches: 02 to 80;
6. Number of stitches: 02 to 80; 02 to 100;
7. Packaging: bag, roll bag, bulk, tube, CAP/Mylar + reel tape packing;
