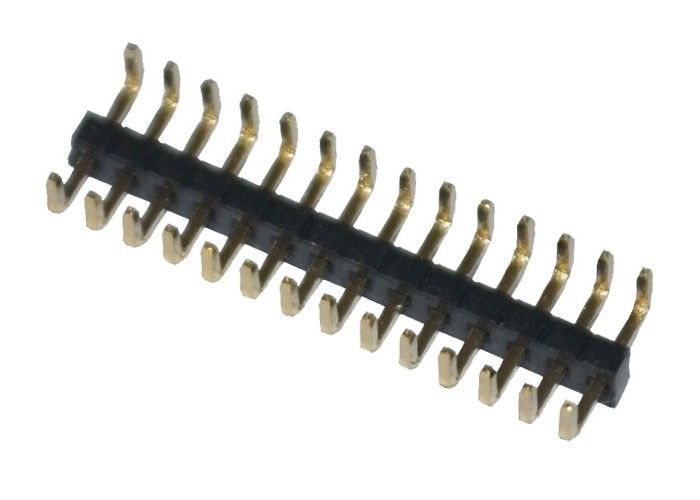

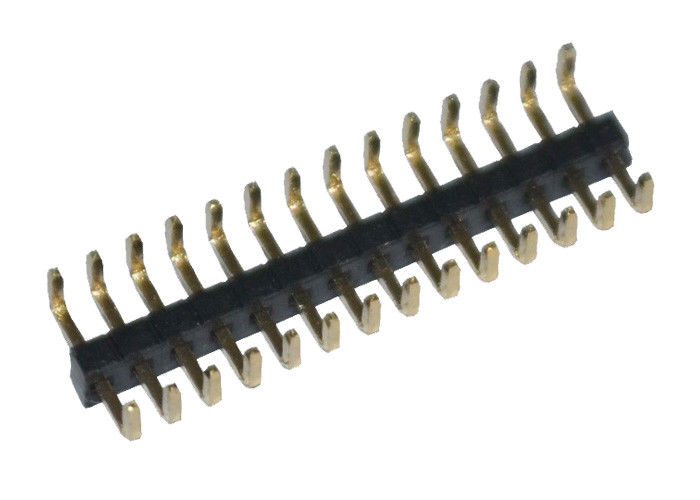

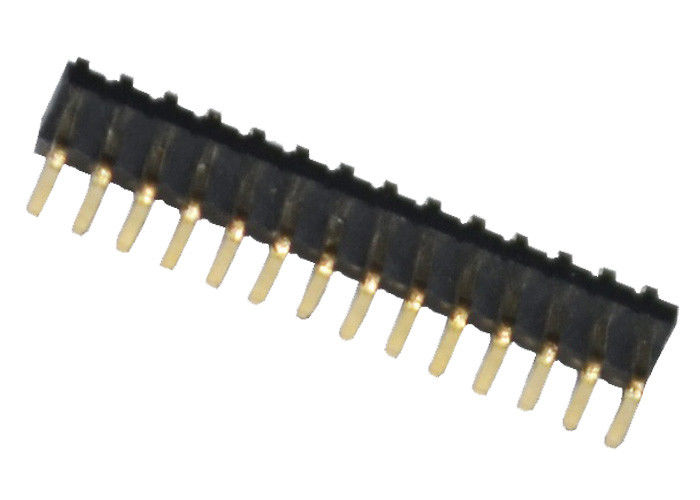

Vertical Mount 14 Pin Header 90 Degree U Type Circuit Board Pin Connectors
Description
1. Pin header is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. As the most reliable connection plate to plate, wire to board provides.
2. Its function is to act as a bridge between the blocked or isolated circuits in the circuit, and to take on the task of current or signal transmission.
| Name | Pin Header Connector/PCB Connector |
| Pitch | 1.27mm |
| Plastic Hight | 1.0mm |
| Type | U Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 1A |
| Contact Resistance(max) | 20m ohm Max |
| Withstanding Voltage | 500V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
| Mounting Type | Through Hole/Horizontal/vertical mount smt |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 2 Pins to 80 Pins |
Category
1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96, 5.08mm;
2. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);
3. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;
4. According to the Height: 1.0/1.5/2.5mm;
5. Number of stitches: 02 to 80;
