Place of Origin:
China
Certification:
ISO9001, SGS, Rohs, Reach

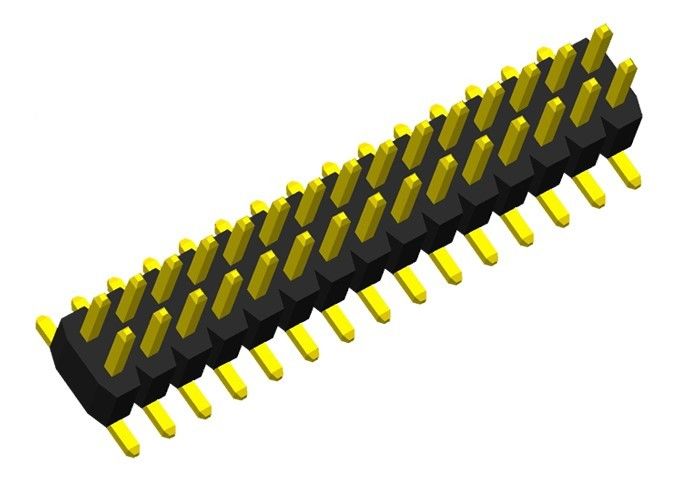

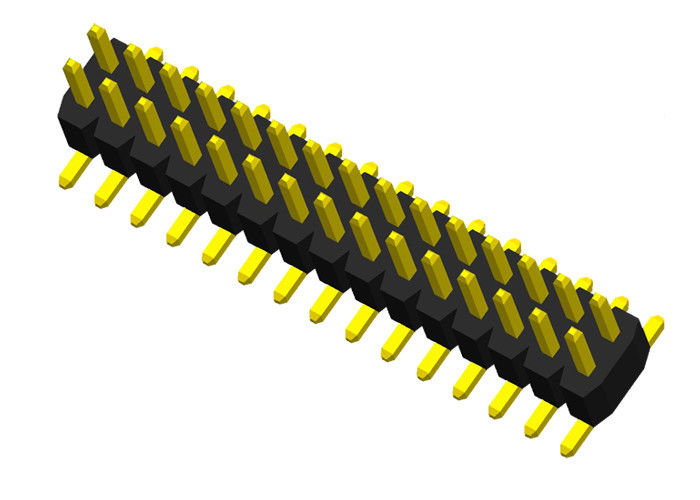

2 Row Pin Header Connector Single Plastics SMT Type Pcb Pin Connector 1.0mm
| Name | Pin Connector 1.0mm |
| Pitch | 1.0mm |
| Type | SMT |
| Insulator Color | Black/Grey |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 0.75A |
| Contact Resistance(max) | 3m ohm Max |
| Operating Voltage | 40V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
| Mounting Type | Through Hole/Horizontal/vertical mount smt |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 2 Pins to 80 Pins |
Description
1. Product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.
2. Common variant on the needle is called the "machine needle" version. The common version is made of stamped and folded metal plates. The needle connector is formed by machining the metal into the required shape. This shape is stronger, the connector is better, and the service life is longer.
Category
1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96, 5.08mm;
2. According to the Height: 1.0/1.5/2.5mm;
3. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;
4. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);
5. According to the height and quantity of plastic (such as single plastic, double plastic, three plastic, etc.).
6. According to whether it needs to be increased and whether it needs to be divided with positioning columns, there are two kinds of positioning columns: one is the internal positioning column, the other is the ear positioning column;
7. Number of stitches: 02 to 80;
8. Packaging: bag, roll bag, bulk, tube, CAP/Mylar + reel tape packing;
9. Surface treatment: gold plating 1u/3u/5u/10u and even more, thick gold, tin plating, nickel plating (1u=1uinch=1/39.37μm);
