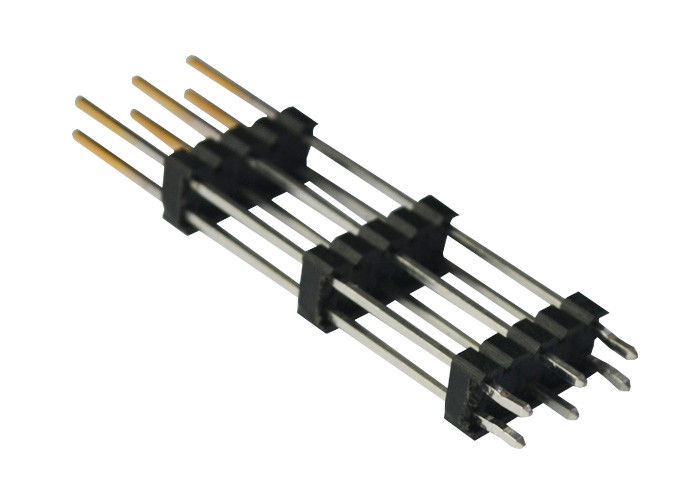

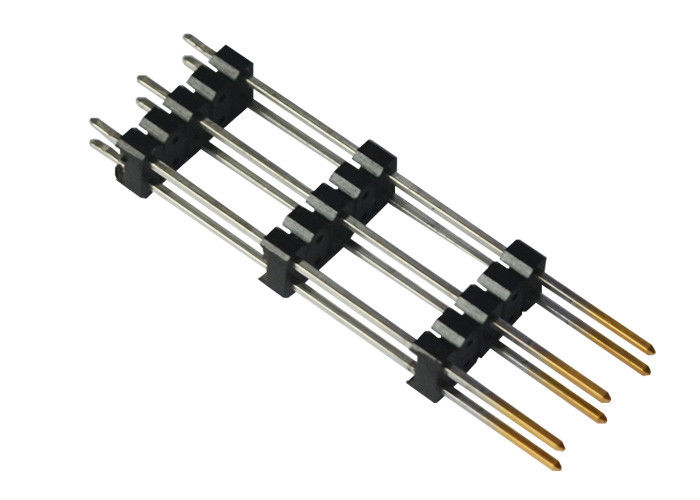

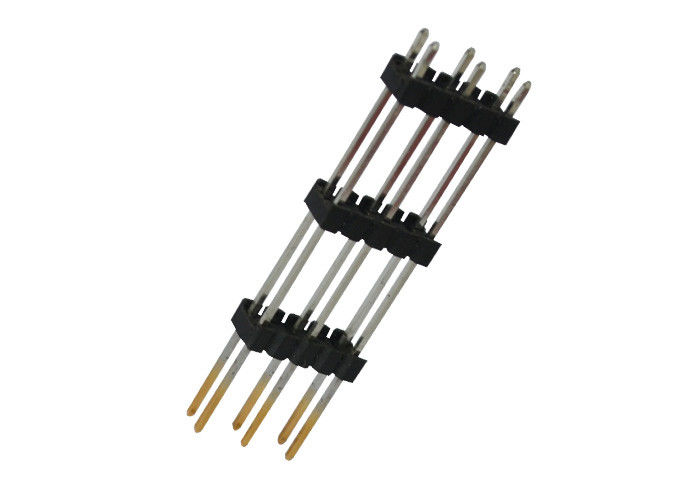

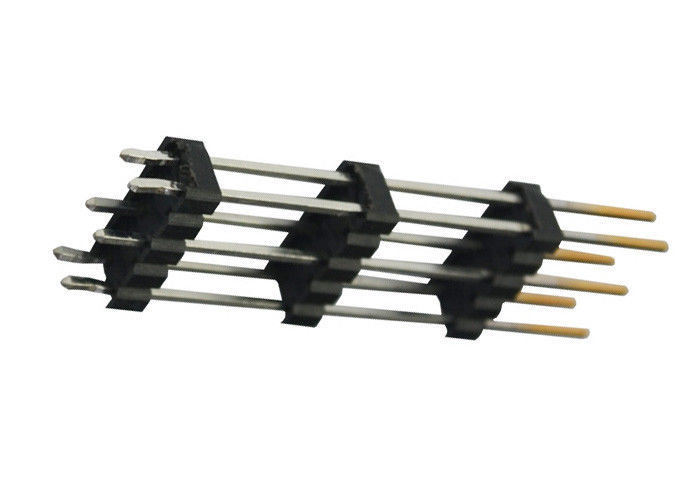

10 Pin Dual Row Pin Header 2.54 Mm Pitch Header Straight Type Three Plastic
| Name | Pin Header Connector/PCB Connector |
| Pitch | 2.54mm |
| Plastic Height | 2.5mm |
| Type | DIP Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 3.0A |
| Contact Resistance(max) | 30m ohm Max |
| Operating Voltage | 40V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
| Mounting Type | Through Hole |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 2 Pins to 80 Pins |
What is the Pin Header Connector?
1. Pin header is called universal connector. Based on different designs for PCB, they choose different pitch connectors to meet.
2. Generally, pin headers with suited female headers are used to finish created modules in electronic industry.
3. Regarding pin header electrical and mechanical properties, the same pitch has the same function.
Product Application:
Pin header is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. As the most reliable connection plate to plate, wire to board provides.
