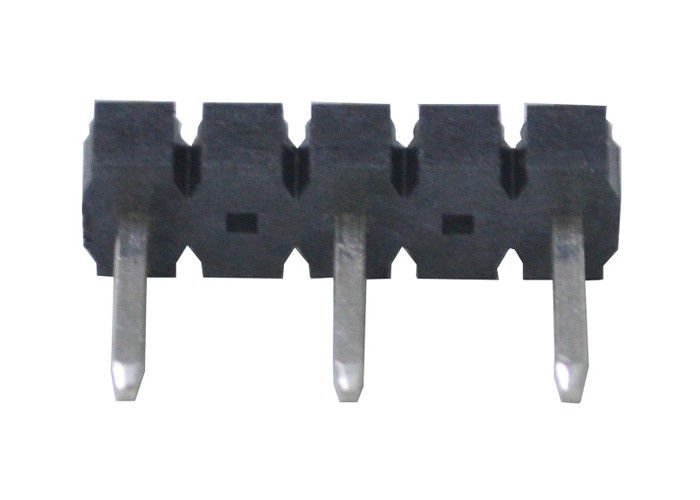

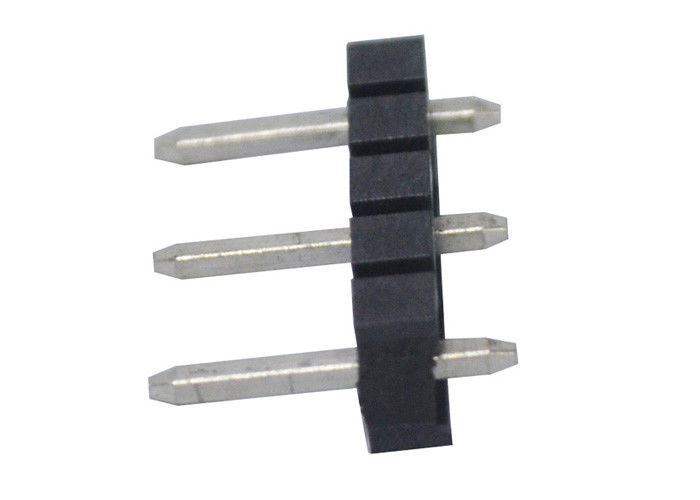

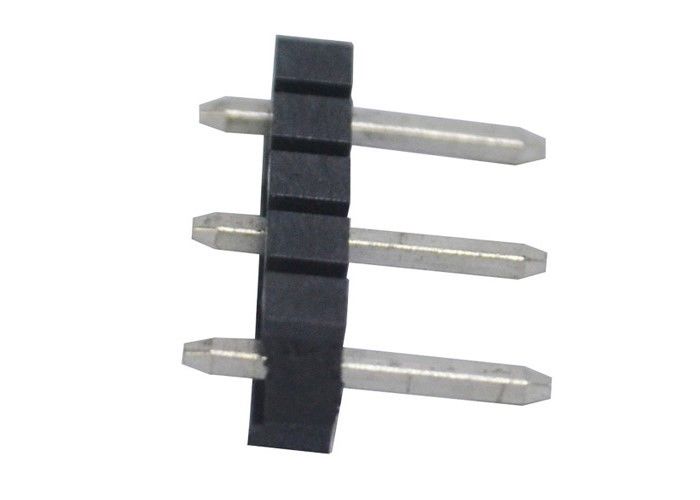

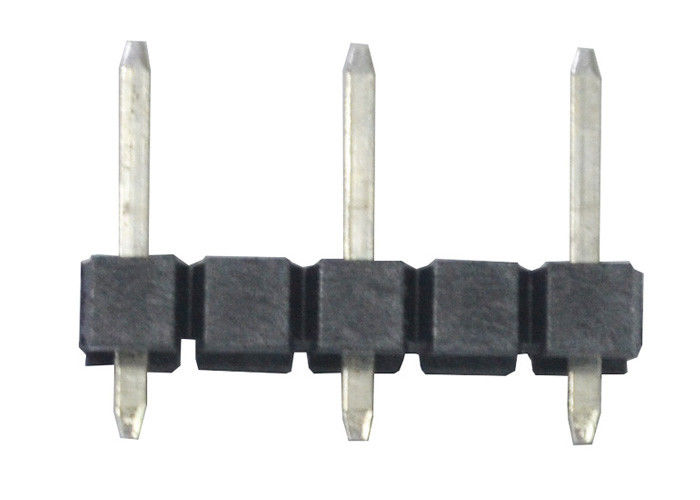

Straight Single Row Pin Header 180 Degree 3.96 Mm Pitch Connector

Straight Single Row Pin Header 180 Degree Type Black 3.96 Mm Pitch Connector


Description
1. Product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.
2. Common variant on the needle is called the "machine needle" version. The common version is made of stamped and folded metal plates. The needle connector is formed by machining the metal into the required shape. This shape is stronger, the connector is better, and the service life is longer.
3. It is usually used together with female header to form board to board connection; or it is used together with electronic harness terminal to form board to line connection; it can also be used independently for board to board connection.

Category

1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96, 5.08mm;

2. According to the height and quantity of plastic (such as single plastic, double plastic, three plastic, etc.).

3. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;

4. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);

5. According to whether it needs to be increased and whether it needs to be divided with positioning columns, there are two kinds of positioning columns: one is the internal positioning column, the other is the ear positioning column;

7. Number of stitches: 02 to 80; 02 to 100;

9. Packaging: bag, roll bag, bulk, tube, CAP/Mylar + reel tape packing;

Packing & Shipping

1. Housing: bag /SMT Wafer:tape and reel/terminal:tape and reel .Normally,we use the carton with good quality to put all goods in it in case any damage during the delivery.

2. The way of shipment : by sea, by air, or express such as DHL/TNT/UPS etc.

3. Delivery Time: normally 3~7wroking dasy. For urgent orders ,we can shorten the delivery time accordingly.

Our Advantages

1. R & D personnel with over 10year's experience

2. Automated facilities for cost-efficient production

3. Conforming to ISO9001:2008 and RoHs standards

4. Own lab with X-ray plating thickness,IR reflow soldering and Schaffner insulation testers

5. OEM/ODM orders welcome

6. One-stop service from R&D and mold design to mass production

7. All components and accessories made in-house
