Place of Origin:
China
Certification:
ISO9001, SGS, Rohs, Reach

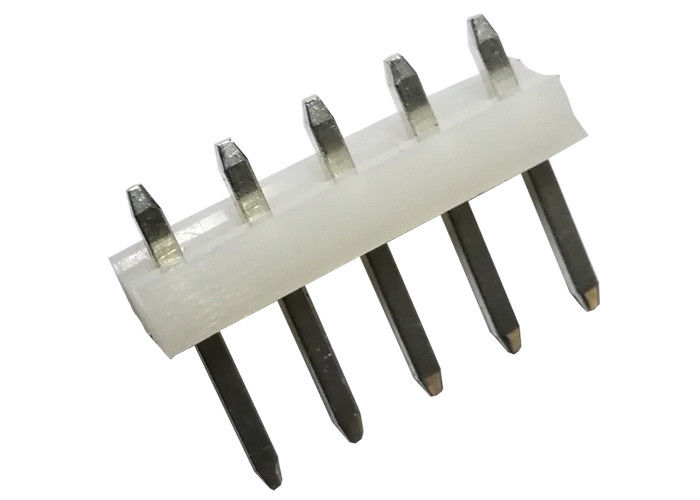

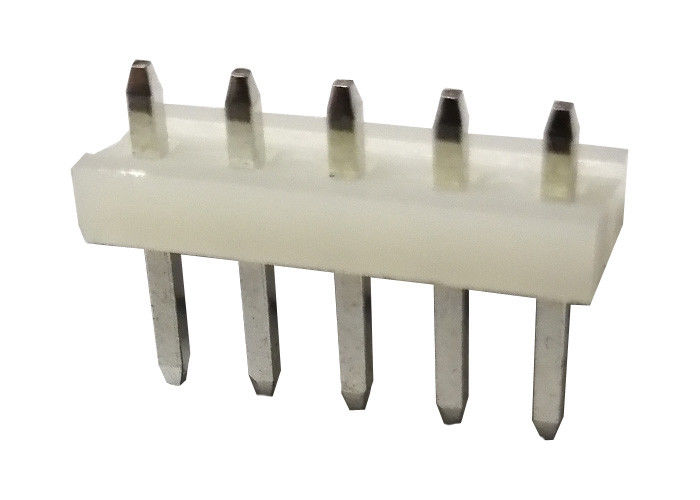

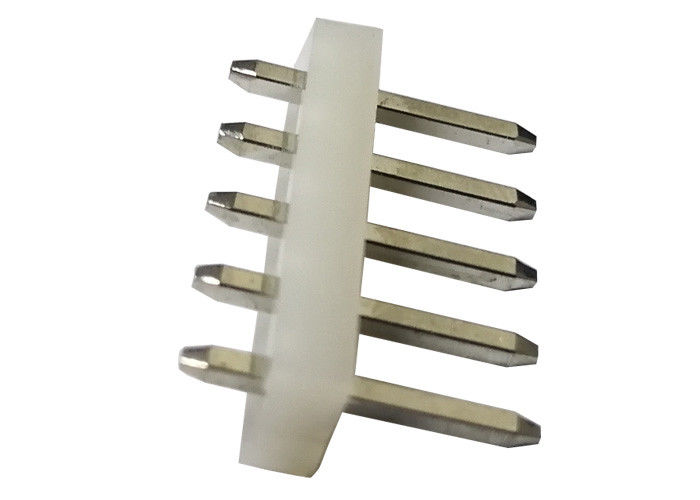

180 Degree Single Row Pin Header Connector 5 Pin Connector 3.96 Mm X 3.2 Mm
Packing & Shipping
1. Housing: bag /SMT Wafer:tape and reel/terminal:tape and reel .Normally,we use the carton with good quality to put all goods in it in case any damage during the delivery.
2. The way of shipment : by sea, by air, or express such as DHL/TNT/UPS etc.
3. Delivery Time: normally 3~7wroking dasy. For urgent orders ,we can shorten the delivery time accordingly.
| Product Name: pin connector | ||||||||
| features: the use of a wide range of environmental protection fireproof antioxidant strong conductivity, to be blocked in the circuit between the circuit or isolated, play bridge function, assume the current task or signal transmission. | ||||||||
| product material: its material is brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, the surface of nickel plating, nickel plating. | ||||||||
| Application scope: It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. Provide the most reliable connection for the plate to plate and the line to plate. |
|
Pitch: 3.96mm |
|||||
| Plastic Hight: 3.2mm | |||||
| Rated Current:7.0AMP | |||||
| Contact Resistance: 20mΩ Max | |||||
| Withstand Voltage:1000V AC/DC | |||||
| Insulation Resistance:1000MΩ Min | |||||
| Operation Temperature: -40°c to +105°c | |||||
| Contact Material :brass | |||||
| Contact Plating: Au Over Ni | |||||
| Insulator Material :Polyester (UL94V-0) | |||||
|
Termination: Solder |
|||||
|
Processing Temperature: 260±5℃ for 10 seconds |
Category
1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96, 5.08mm;
2. According to the height and quantity of plastic (such as single plastic, double plastic, three plastic, etc.).
3. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;
4. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);
5. According to whether it needs to be increased and whether it needs to be divided with positioning columns, there are two kinds of positioning columns: one is the internal positioning column, the other is the ear positioning column;
7. Number of stitches: 02 to 80; 02 to 100;
9. Packaging: bag, roll bag, bulk, tube, CAP/Mylar + reel tape packing;
