Place of Origin:
China
Certification:
ISO9001, SGS, Rohs, Reach

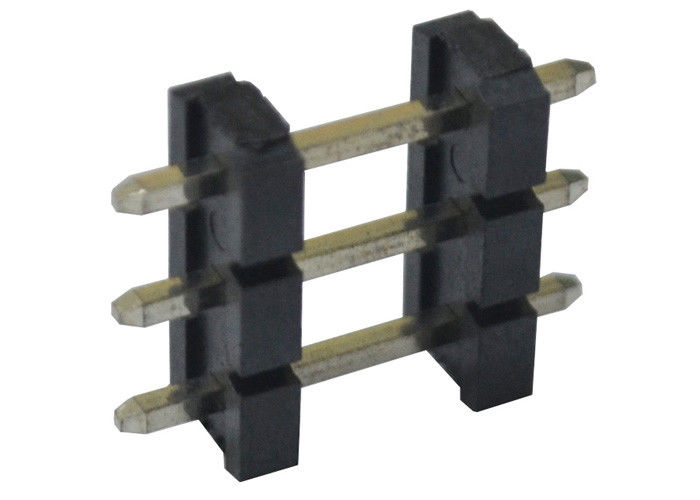

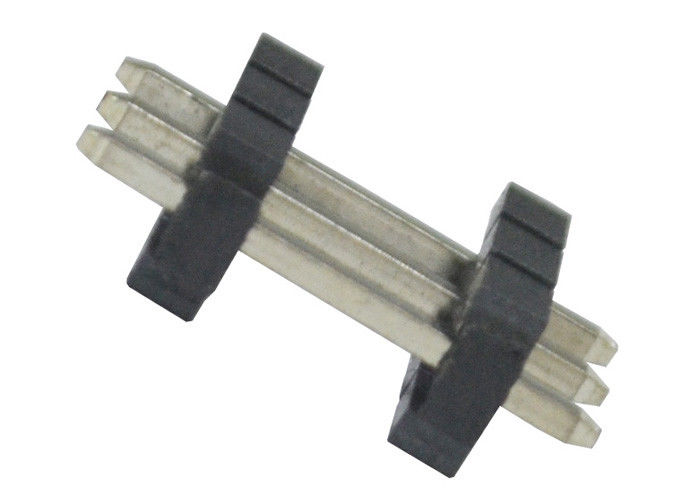

Single Row Straight Pin Header Pitch 5.08 X 2.5mm Female Header Double Plastic
Product Name: pin connector | ||||||||
features: It is usually used together with female header to form board to board connection; or it is used together with electronic harness terminal to form board to line connection; it can also be used independently for board to board connection. | ||||||||
product function : Its function is to act as a bridge between the blocked or isolated circuits in the circuit, and to take on the task of current or signal transmission. | ||||||||
Application scope: It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. Provide the most reliable connection for the plate to plate and the line to plate. |
Pitch: 5.08mm |
|||||
Plastic Hight: 2.5mm | |||||
Rated Current:7.0AMP | |||||
Contact Resistance: 30mΩ Max | |||||
Withstand Voltage:500V AC/DC | |||||
Insulation Resistance:1000MΩ Min | |||||
Operation Temperature: -40°c to +105°c | |||||
Contact Material :brass | |||||
Contact Plating: Au Over Ni | |||||
Insulator Material :Polyester (UL94V-0) | |||||
Termination: Solder |
|||||
Processing Temperature: 260±5℃ for 10 seconds |
Packing & Shipping
1. Housing: bag /SMT Wafer:tape and reel/terminal:tape and reel .Normally,we use the carton with good quality to put all goods in it in case any damage during the delivery.
2. The way of shipment : by sea, by air, or express such as DHL/TNT/UPS etc.
3. Delivery Time: normally 3~7wroking dasy. For urgent orders ,we can shorten the delivery time accordingly.
