Straight Type Bulkhead Mini TNC Connector , TNC Panel Mount Connectors

Product Details

Design Standard::

IEC 60169-17

Type:

Straight

Plating:

Nickel Plated

Durability:

500 Cycles

Contact Material:

Brass, BeCu

Material:

Bass

Impedance:

50Ω

Product Name:

TNC Conector

Highlight:

tnc bulkhead connector

mini rf connector

Payment & Shipping Terms

Minimum Order Quantity

Negotiable

Price

Negotiable

Packaging Details

Standard Export Carton

Delivery Time

Within 3 weeks

Female Right Angle RF Connector , SMP RF Coaxial Connector Gold Plated

Get Best Price

50Ω Impedance SMP Coaxial Connector Flanges Mount for Military

Get Best Price

Right Angle Female SMP RF Connector 2 Holes Flange Mount DC~40GHz

Get Best Price

Microstrip Series Male SMP RF Connector Coaxial Connector Frequency 40GHz

Get Best Price

861329934567

ecergood@maoyt.com

86-0731-6531333

Contact Now

Product Description

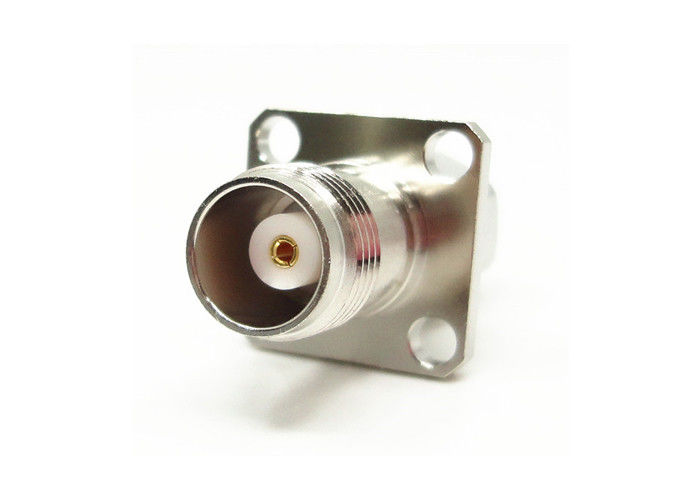

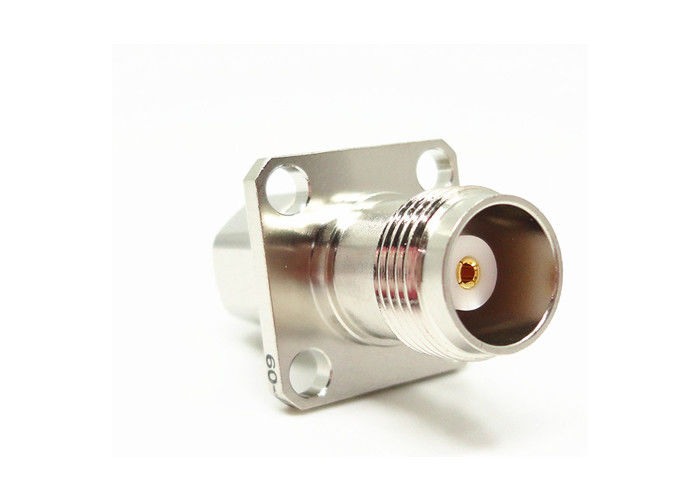

Nickel Plated TNC Female Bulkhead Four Hole Flange Panel Mount RF Connector

TNC series product is designed as a threaded version of BNC connector, the TNC RF connectors features screw threads for mating.TNC connectors are miniature, threaded waterproof units with a constant 50ohm impedance,operating from DC-11ghZ, there are two types of TNC connectors:standard and reverse polarity.these low cost connector typically utilize die cast and molded components.While performance will not be equal to the industrial or military grade products,these connectors are ideal for use on a varity of commercial applications. Widely used for antenna connections, TNC have many applications in avionics, defence, communications and general industrial markets. Reverse polarity and 75 ohm TNC are also available.

Straight Type Bulkhead Mini TNC Connector , TNC Panel Mount Connectors 0

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~4GHz
Rated Voltage	2500VRMS (Maximum sea-level)
Dielectrics Voltage-resistance	750VRMS (Maximum sea-level)
Insulation Resistance	≥2000MΩ
Contact Resistance	Outer conductor	≤6mΩ
	Center conductor	≤1.5mΩ
VSMR	≤1.3

Mechanical Specification

Design Standard	IEC 60169-17
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500Cycles
Contact Retention	10N min
Cable Retention	100N min
Mating Force	13.6N max
Un-Coupling Force	13.6N max

Environmental Specification:

Operating Temperature	-30 to +70 Deg C
IP Rating ( Mated )	IP64

Detailed Drawing

Straight Type Bulkhead Mini TNC Connector , TNC Panel Mount Connectors 1

Features:

1, While performance will not be equal to the industrial or military grade products,these RF crimp connectors are ideal for use on a varity of commercial applications
2, TNC series RF Electronic connector is designed as a threaded version of BNC connector.
3, TNC RF connectors features screw threads for mating. RF TNC connectors are miniature, threaded waterproof units with a constant 50ohm impedance,operating fromDC-11ghz
4, There are two types of TNC connectors:standard and reverse polarity
5, These low cost china supplier factory RF connector typically utilize die cast and molded components.
6,The TNC series products are a kind of whorl joining, it has work width frequently,join reliable.

NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
