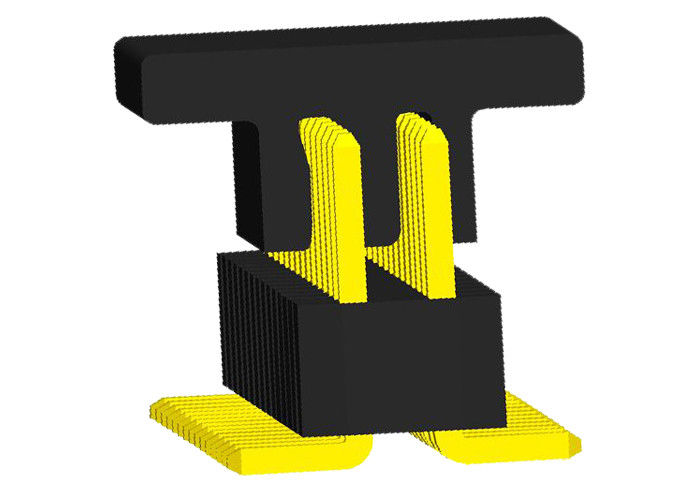

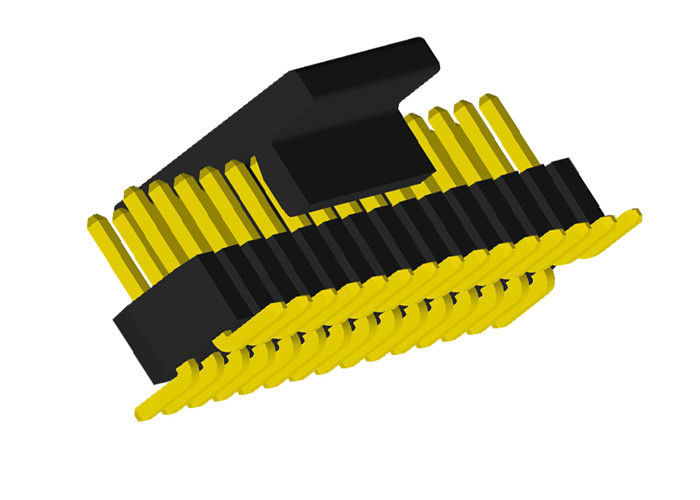

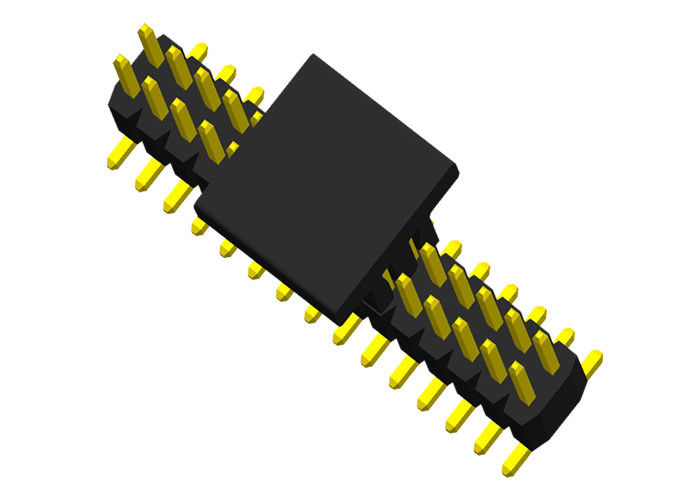

1.0mm Male Connector Pin Header CAP Vertical Mount 2x15 30 Pin Double Row
| Name | Pin Header Connector/PCB Connector |
| Pitch | 1.0mm |
| Type | SMT |
| Insulator Color | Black/Grey |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 0.75A |
| Contact Resistance(max) | 3m ohm Max |
| Operating Voltage | 40V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
| Mounting Type | Through Hole/Horizontal/vertical mount smt |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 2 Pins to 80 Pins |
Description
1. Product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.
2. Its function is to act as a bridge between the blocked or isolated circuits in the circuit, and to take on the task of current or signal transmission.
3. Pin header is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. As the most reliable connection plate to plate, wire to board provides.
Category
1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96, 5.08mm;
2. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);
3. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;
4. According to the Height: 1.0/1.5/2.5mm;
5. Number of stitches: 02 to 80;
6. According to whether it needs to be increased and whether it needs to be divided with positioning columns, there are two kinds of positioning columns: one is the internal positioning column, the other is the ear positioning column;
7. According to the height and quantity of plastic (such as single plastic, double plastic, three plastic, etc.).
8. Packaging: bag, roll bag, bulk, tube, CAP/Mylar + reel tape packing;
